50153483

Software functions: Counting: surfaces, edges, forms, Locate: surface, edge, form, Measuring: angle, circle, distance, point-to-po

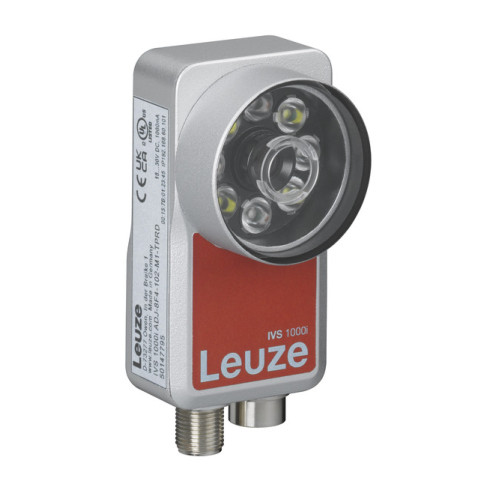

Manufacturer's No: IVS1058iADJ-8F4-102-M4-TMEC     Manufacturer: Leuze
Software functions: Counting: surfaces, edges, forms, Locate: surface, edge, form, Measuring: angle, circle, distance, point-to-point, point-to-line, Parts detection: brightness, contrast, surface pi

Availability Back Order

£2,266.00
  • Software Functions:

  • Counting: surfaces, edges, forms

  • Locate: surface, edge, form

  • Measuring: angle, circle, distance, point-to-point, point-to-line

  • Parts detection: brightness, contrast, surface pixels, edge pixels

  • Reading Distance: 50 ... 2,000 mm
  • Light Source: LED, red / white, internally switchable
  • Camera Resolution:

  • Horizontal: 1,440 px

  • Vertical: 1,080 px

Read more

  • Focal Length: 8 mm
  • F-stop (F): 4
  • Supply Voltage: 18 ... 30 V, DC
  • Power Consumption, Max.: 24 W, at 24 V DC
  • Interface: EtherNet IP, Ethernet
  • Transmission Protocol: TCP/IP, UDP, Telnet, FTP/SFTP, Ethernet/IP
  • Connection: Connector, M12
  • Dimensions: 45 mm x 85 mm x 35 mm
  • Optics Cover: Plastic / PMMA
  • Configuration/Parametization: Vision Studio software
  • Ambient Temperature, Operation: 0 ... 50 °C
  • Degree of Protection: IP 67


Product

Manufacturer Material ID -
IVS1058iADJ-8F4-102-M4-TMEC
Net Weight -

Additional Product Information

Commodity Code -
84719000
Country of Origin -
DE
UNSPSC -
32121702
Leuze

Availability Back Order

£2,266.00
