3090925

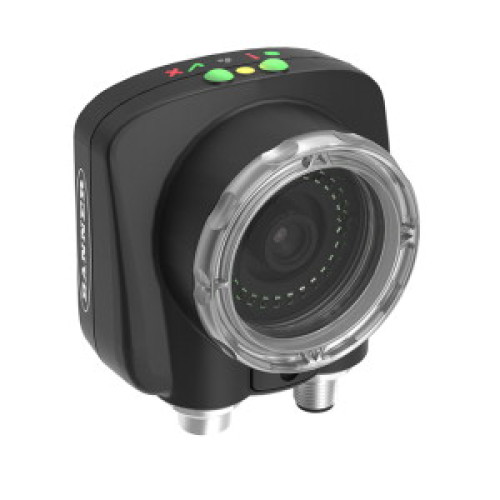

iVu PLUS TG Gen2 Remote Sensor with Ethernet, No Light and 12 lens, Requires power cordset and bracket, Ethernet and USB cordset o

Manufacturer's No: IVU2PRGX12     Manufacturer: Turck Banner
iVu PLUS TG Gen2 Remote Sensor with Ethernet, No Light and 12 lens, Requires power cordset and bracket, Ethernet and USB cordset optional

Availability On Request

£1,609.66
  • Grayscale Image Sensor, 1/3“ CMOS, 752x480 pixels
  • Focal distance: 4 mm, Lens: 12mm, M12x1
  • Second iVu generation with internal memory for 30 inspections
  • Protection class: IP67
  • Operating voltage: 10-30 VDC
  • External strobe output: +5 VDC, External trigger input
  • Connectivity: 3 x programmable switching output (PNP/NPN), 1 x RS232 data communication, Ethernet via M8 x 1 male, 4-pin, USB 2.0 host: M8 female, 4-pin
  • Industrial Ethernet: PROFINET, EtherNet/IP, Modbus/TCP, PCCC
  • Requires external display RDM35


Product

Manufacturer Material ID -
IVU2PRGX12
Net Weight -
0.63kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
43211902
Turck Banner

Availability On Request

£1,609.66
