90739 {B}

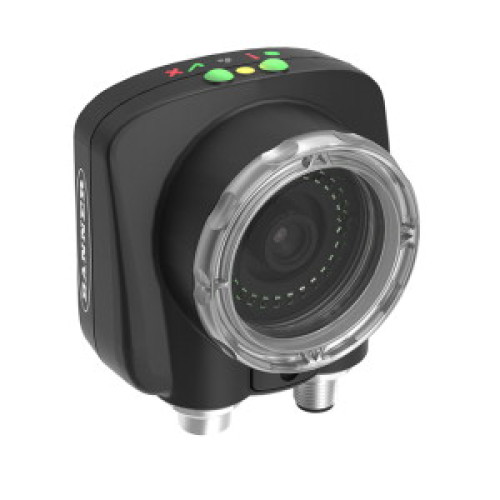

iVu PLUS BCR Gen2 Sensor with Ethernet, Red Ring Light and 4.3 Lens, Requires Power Cordset and Bracket, Ethernet and USB Cordset

Manufacturer's No: IVU2PTBR04     Manufacturer: Turck Banner
iVu PLUS BCR Gen2 Sensor with Ethernet, Red Ring Light and 4.3 Lens, Requires Power Cordset and Bracket, Ethernet and USB Cordset Optional

Availability On Request

£2,202.50
  • Identification Barcode Reader
  • Image Sensor: 1/3" CMOS, 752x480 pixels
  • Focal Distance: 4 mm
  • Second iVu Generation
  • Integrated Ring Light: Red
  • Internal Memory for 30 inspections
  • Protection Class: IP67
  • Display: Integrated 65.5 mm LCD color display, 320 x 240 transreflective
  • Lens: 4.3mm, M12x1
  • Operating Voltage: 10-30 VDC

Read more

  • External Strobe Output: +5 VDC
  • External Trigger Input
  • Three PNP/NPN Switching Outputs, selectable via software
  • Connectivity: USB 2.0 host (M8 female, 4-pin), Ethernet (M8 x 1 male, 4-pin), Industrial Ethernet (PROFINET, EtherNet/IP, Modbus/TCP, PCCC)


Product

Manufacturer Material ID -
IVU2PTBR04
Net Weight -
0.63kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
26121629
