3090759

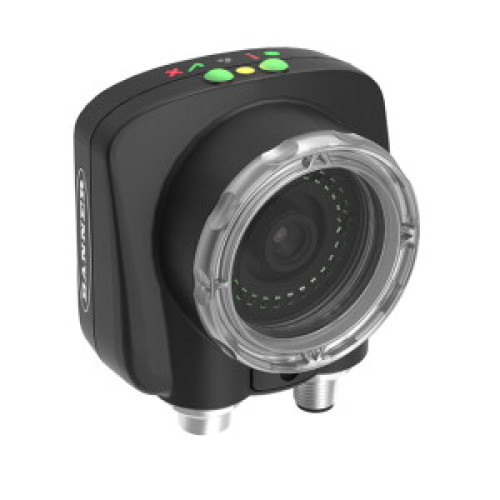

iVu PLUS TG Gen2 Sensor with Ethernet, IR Ring Light and 8 lens, Requires power cordset and bracket, Ethernet and USB cordset opti

Manufacturer's No: IVU2PTGI08     Manufacturer: Turck Banner
iVu PLUS TG Gen2 Sensor with Ethernet, IR Ring Light and 8 lens, Requires power cordset and bracket, Ethernet and USB cordset optional

Availability On Request

£2,013.43
  • Vision system with grayscale image sensor
  • Second generation iVu with internal memory for 30 inspections
  • 1/3" CMOS sensor with 752x480 pixels
  • Focal distance of 8mm
  • Integrated ring light: infrared
  • Operating voltage: 10-30 VDC
  • Protection class: IP67
  • External strobe output: +5 VDC
  • External trigger input
  • Lens: 8mm, M12x1

Read more

  • Display: Integrated 65.5mm LCD color display, 320x240 transreflective
  • Three PNP/NPN switching outputs, selectable via software
  • Connectivity: USB 2.0 host (M8 female, 4-pin), Ethernet (M8x1 male, 4-pin), Industrial Ethernet support for PROFINET, EtherNet/IP, Modbus/TCP, PCCC


Product

Manufacturer Material ID -
IVU2PTGI08
Net Weight -
0.63kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
26121629
Turck Banner

Availability On Request

£2,013.43
