3804557

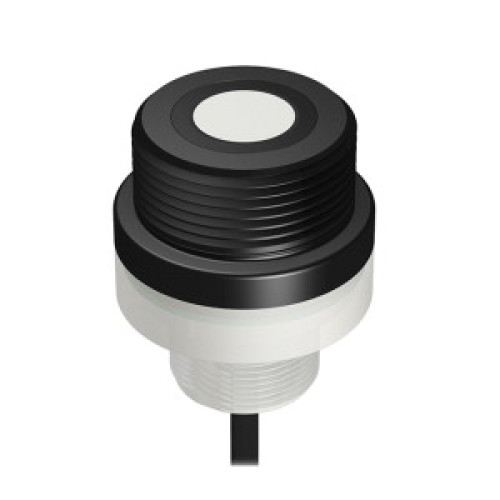

Ultrasonic Sensor 0.1 m to 1 m, Modbus Slave Device Via RS-485, Range: 100 - 1 m (3.94 in to 39.4 in), 230 (9 in) QD Cable

Manufacturer's No: K50UX2ARA     Manufacturer: Turck Banner
Ultrasonic Sensor 0.1 m to 1 m, Modbus Slave Device Via RS-485, Range: 100 - 1 m (3.94 in to 39.4 in), 230 (9 in) QD Cable

Availability On Request

£372.92
  • Type: Ultrasonic Sensor, diffuse mode
  • Interface: RS485/Modbus RTU Serial
  • Operating Voltage: 10-30 VDC or 3.5-5.5 VDC
  • Max. Range: 1000 mm
  • Range: 10-100 cm
  • Sound Frequency: 224 kHz
  • Resolution: > 1 mm
  • Cable Length: 0.23 m
  • Cable Type: PVC, 5-pin male connector, M12 x 1
  • Protection Class: IP67

Read more

  • Operating Temperature: -40 to +70 °C


Product

Manufacturer Material ID -
K50UX2ARA
Net Weight -
0.17kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Construction type housing -
Cylinder, screw-thread
Diameter sensor -
50 Millimetre
Housing material -
Plastic
Length of sensor -
59.5 Millimetre
Material active area of sensor -
Plastic
Material of cable sheath -
Polyvinyl chloride (PVC)
Measuring range length -
100 Millimetre
Standard for interfaces -
RS-485
Supply voltage -
10 Volt
Type of electric connection -
Cable with connector
Turck Banner

Availability On Request

£372.92
