3094612

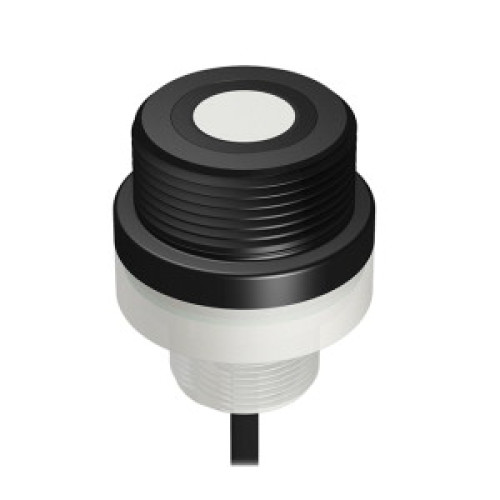

Ultrasonic Sensor 0.3 m to 3 m, Modbus Slave Device via RS-485, Range: 300 - 3 m (11.8 in to 118 in), 230 (9 in) M12 Pigtail QD

Manufacturer's No: K50UX2CRA     Manufacturer: Turck Banner
Ultrasonic Sensor 0.3 m to 3 m, Modbus Slave Device via RS-485, Range: 300 - 3 m (11.8 in to 118 in), 230 (9 in) M12 Pigtail QD

Availability On Request

£372.92
  • Type: Ultrasonic Sensor
  • Mode: Diffuse mode sensor
  • Interface: RS485/Modbus RTU Serial Interface
  • Operating Voltage: 10-30 VDC or 3.5-5.5 VDC
  • Max. Range: 3000 mm
  • Range: 30-300 cm
  • Sound Frequency: 114 kHz
  • Resolution: > 1 mm
  • Cable Length: 0.23 m
  • Cable Type: PVC, with male connector, M12 x 1, 5-pin

Read more

  • Protection Class: IP67
  • Operating Temperature: -40 to +70 °C


Product

Manufacturer Material ID -
K50UX2CRA
Net Weight -
0.16kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
43211902

Technical Specification

Ambient temperature -
-40 Degrees celsius
Diameter sensor -
50 Millimetre
Housing material -
Plastic
Length of sensor -
59.5 Millimetre
Material active area of sensor -
Plastic
Material of cable sheath -
Polyvinyl chloride (PVC)
Measuring range length -
300 Millimetre
Standard for interfaces -
RS-485
Supply voltage -
10 Volt
Type of electric connection -
Cable with connector
Turck Banner

Availability On Request

£372.92
