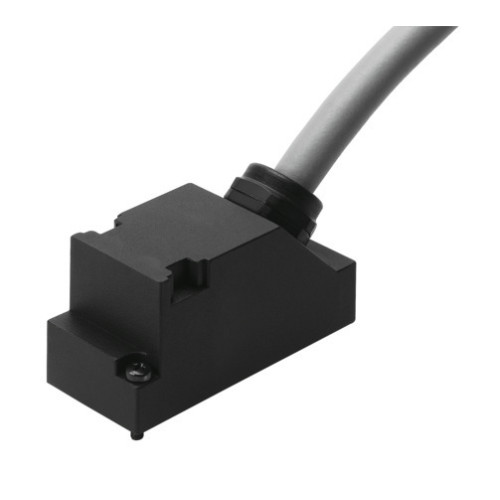

KMP4-25P-10-PVC Connecting cable

Manufacturer's No: KMP4-25P-10-PVC     Manufacturer: Festo
KMP4-25P-10-PVC Connecting cable

Availability On Request

£197.64
  • Product: KMP4-25P-10-PVC Connecting Cable
  • Cable Type: Sub-D socket (hood for CPV), angled, 25-pin/-wire, PVC
  • Length: 10 meters
  • Cross-Sectional Area: 0.25 mm²
  • Electrical Connections: 25 pins/wires, IP65 rated
  • Operational Voltage Range: 0V to 30V DC, Nominal Voltage: 24V DC
  • Current Rating: 3A at 40°C, Surge Immunity: 1KV
  • Cable Characteristics: Suitable for energy chains, bending radius fixed: 33mm, moving: 55mm
  • Cable Diameter: 10.4mm, Cable Structure: 25 x 0.25 mm²
  • Protection: IP65, RoHS-compliant, Pollution Degree: 3

Read more

  • Temperature Range: -40°C to 70°C (ambient), -5°C to 70°C (moving cable), storage: -25°C to 75°C
  • Material: PVC cable sheath (grey), PA housing (black), NBR seals, gold-plated copper alloy electrical contacts
  • Compliance: CE mark, UKCA marking, LABS (PWIS) conformity


Product

Manufacturer Material ID -
KMP4-25P-10-PVC
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
85444290
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£197.64
