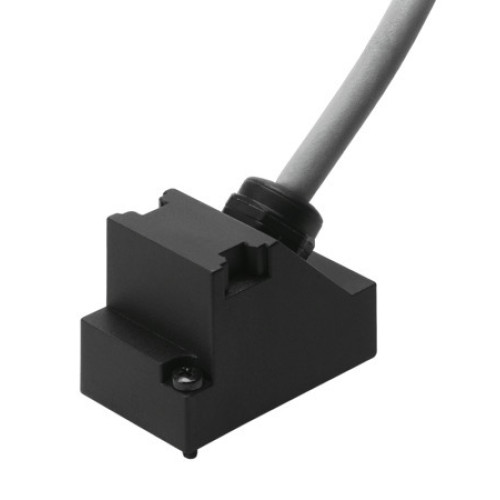

KMP4-9P-10-PVC Connecting cable

Manufacturer's No: KMP4-9P-10-PVC     Manufacturer: Festo
KMP4-9P-10-PVC Connecting cable

Availability On Request

£127.10
  • Product: KMP4-9P-10-PVC Connecting Cable
  • Cable Type: Sub-D socket (hood for CPV)
  • Configuration: Angled, 9-pin/-wire
  • Cable Length: 10 m
  • Cable Diameter: 7.4 mm
  • Cross Section Conductor: 0.25 mm²
  • Electrical Connections: 9-pin/-wire on field device side, 10-pin/-wire on controller side
  • Voltage Range: 0 V to 30 V DC, Nominal 24 V DC
  • Current Rating: 3 A at 40°C
  • Immunity to Surge: 1 KV

Read more

  • Protection Rating: IP65
  • Bending Radius: 24 mm (fixed cable), 39 mm (moving cable)
  • Cable Sheath Material: PVC, Grey color
  • Housing Material: PA, Black color
  • Seals Material: NBR
  • Electrical Contact Material: Gold-plated copper alloy
  • Temperature Range: -40°C to 70°C (ambient), -5°C to 70°C (moving cable), -25°C to 75°C (storage)
  • Compliance: RoHS, CE mark, UKCA marking, LABS (PWIS) conformity
  • Cable Structure: 10 x 0.25 mm², Cut off bluntly wire ends
  • Suitable for energy chains, DIN 41652 standard, IP65 protection in assembled state
  • Pollution Degree: 3


Product

Manufacturer Material ID -
KMP4-9P-10-PVC
Net Weight -
0.79kg

Additional Product Information

Commodity Code -
85444290
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£127.10
