50142128

Series: L250; Functions: Locking device with guard interlocking in acc. with EN ISO 14119 (type 4); Activation mode of safety outp

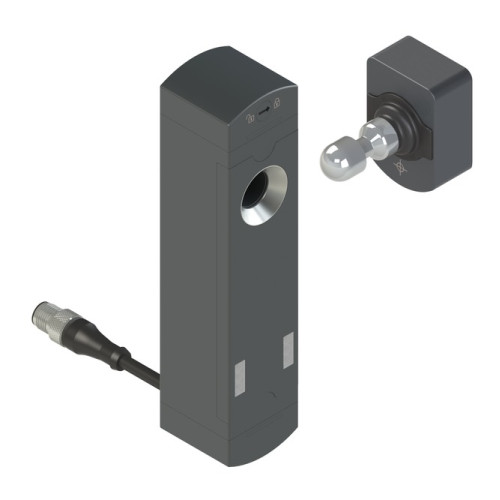

Manufacturer's No: L250-P31ML-CB02M12S8-SCA     Manufacturer: Leuze
Series: L250; Functions: Locking device with guard interlocking in acc. with EN ISO 14119 (type 4); Activation mode of safety outputs: Safety outputs active if safety door is closed and locked; Opera

Availability Back Order

£497.00
  • Series: L250
  • Functions: Locking device with guard interlocking in accordance with EN ISO 14119 (type 4)
  • Activation mode of safety outputs: Safety outputs active when safety door is closed and locked
  • Operating principle: Actuator locked when electromagnet is activated using open circuit current principle
  • Performance Level (PL): Up to and including e, EN ISO 13849-1
  • Encoding level: Low, EN ISO 14119
  • Type of wiring: Single connection
  • Safety-related switching outputs type: Safety-related switching output OSSD
  • Connection: Cable with connector, M12, 8-pin, Metal, Male, A-coded
  • Dimensions: 40 mm x 178 mm x 40 mm

Read more

  • Housing material: Plastic
  • Maximum locking force: 2,100 N
  • Degree of protection: IP 67, IP 69K
  • Certifications: c UL US, ECOLAB, TÜV Süd

Accessories

Others



Product

Manufacturer Material ID -
L250-P31ML-CB02M12S8-SCA
Net Weight -
0.70kg

Additional Product Information

Commodity Code -
85369095
Country of Origin -
IT
UNSPSC -
39121528

Technical Specification

Thumbnail of product picture -
Ambient temperature during operating -
-20 Degrees celsius
Clamping force -
2100 Newton
Coating housing -
Uncoated
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height of sensor -
178 Millimetre
Housing material -
Plastic
Interface type -
None
Length of sensor -
40 Millimetre
Rated control supply voltage magnet drive at DC -
24 Volt
Suitable for safety functions -
Type of electric connection -
Connector M12
Type of guard locking -
Quiescent current principle
Type of interface for safety communication -
None
Type of switching contact -
Other
Width sensor -
40 Millimetre
Leuze

Availability Back Order

£497.00
