50142115

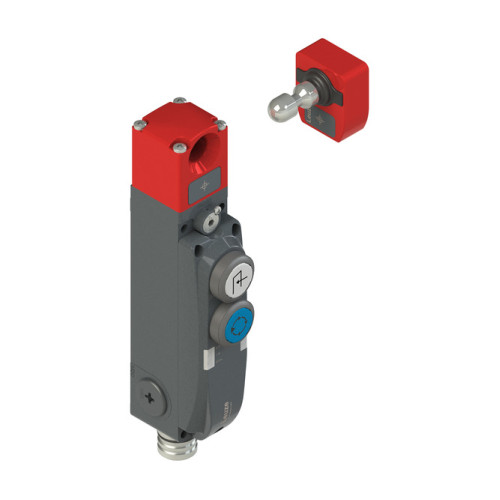

Series: L300-B1; Functions: Locking device with guard interlocking in acc. with EN ISO 14119 (type 4); Activation mode of safety o

Manufacturer's No: L300-B1-M31M23B19-SLM24-SCA     Manufacturer: Leuze
Series: L300-B1; Functions: Locking device with guard interlocking in acc. with EN ISO 14119 (type 4); Activation mode of safety outputs: Safety outputs active if safety door is closed and locked; Op

Availability On Request

£997.00
  • Series: L300-B1
  • Functions: Locking device with guard interlocking in accordance with EN ISO 14119 (type 4)
  • Performance Level (PL): Up to and including e, EN ISO 13849-1
  • Activation mode of safety outputs: Safety outputs active if safety door is closed and locked
  • Operating principle: Quiescent current principle – Actuator locked if electromagnet is deactivated
  • Encoding level: Low, EN ISO 14119
  • Type of wiring: Single connection, Series connection
  • Safety-related switching outputs, type: Safety-related switching output OSSD
  • Connection: Connector, M23, 19-pin, Metal, Male, A-coded
  • Housing material: Metal

Read more

  • Release device: Auxiliary release
  • Locking force, max.: 9,750 N
  • Operational controls: 2 command devices
  • Function of the operational control: Button illuminates with icon “Request”, white; Button illuminates with icon “Acknowledge”, blue
  • Degree of protection: IP 65
  • Certifications: c UL US, ECOLAB, TÜV Süd

Accessories

Others



Product

Manufacturer Material ID -
L300-B1-M31M23B19-SLM24-SCA
Net Weight -
1.70kg

Additional Product Information

Commodity Code -
85369095
Country of Origin -
IT
UNSPSC -
39121528

Technical Specification

Thumbnail of product picture -
Ambient temperature during operating -
-20 Degrees celsius
Clamping force -
9750 Newton
Coating housing -
Powder coated
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP65
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Housing material -
Metal
Interface type -
None
Rated control supply voltage magnet drive at DC -
24 Volt
Suitable for safety functions -
Type of electric connection -
Plug-in connection others
Type of guard locking -
Quiescent current principle
Type of interface for safety communication -
None
Type of switching contact -
Other
Leuze

Availability On Request

£997.00
