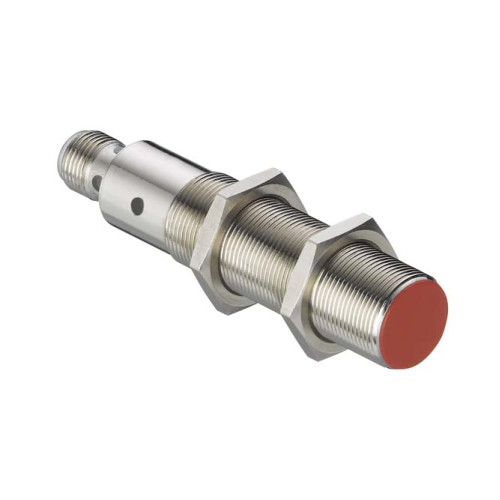

The Capacitive sensor from . Switching distance Sn: 1 ... 3 mm; Assured switching distance: 2.4 mm; Output function: NPN, NC (nor

Manufacturer's No: LCS-2M12B-F03NNC-M12     Manufacturer: Leuze
The Capacitive sensor from .  Switching distance Sn: 1 ... 3 mm; Assured switching distance: 2.4 mm; Output function: NPN, NC (normally closed); Connection: Connector, M12, Metal, 3 -pin; Housing de

Availability Back Order

£56.00
  • Switching distance Sn: 1 - 3 mm
  • Assured switching distance: 2.4 mm
  • Output function: NPN, NC (normally closed)
  • Connection: Connector, M12, Metal, 4-pin
  • Design: Cylindrical housing
  • Thread size: M12 x 1 mm
  • Dimensions: 12 mm x 68 mm

Accessories



Product

Manufacturer Material ID -
LCS-2M12B-F03NNC-M12
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
CN
UNSPSC -
32151500

Technical Specification

Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Category according to EN 954-1 -
UN
Type of interface -
UN
Width sensor -
- Millimetre
Height of sensor -
- Millimetre
Performance level acc. EN ISO 13849-1 -
UN
Material housing -
Metal
Thumbnail of product picture -
Coating housing -
Other
Construction type housing -
Cylinder, screw-thread
Diameter sensor -
12 Millimetre
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Housing material -
Metal
Length of sensor -
68 Millimetre
Max. output current at protected output -
0 Milliampere
Mechanical mounting condition for sensor -
Concise
Number of contact energized outputs with signalling function -
0
Number of protected contact energized outputs -
0
Number of protected semiconductor outputs -
0
Number of semiconductor outputs with signalling function -
1
Performance level acc. to EN ISO 13849-1 -
None
Rated control supply voltage at DC -
10 Volt
SIL according to IEC 61508 -
None
Supply voltage -
10 Volt
Switching distance -
2.4 Millimetre
Switching frequency -
100 Hertz
Type of actuation -
Other
Type of electric connection -
Connector M12
Type of interface for safety communication -
None
Type of switch function -
Breaker contact
Type of switching output -
NPN
Voltage type -
DC
Leuze

Availability Back Order

£56.00
