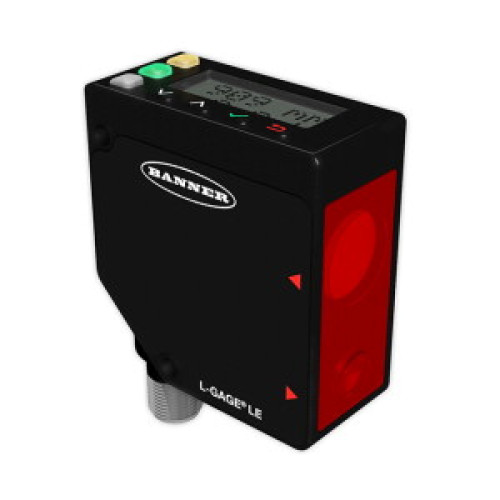

3097763

Laser Displacement Sensor, Range: 100-400, Input: 12-30 V dc, Output 1: Push/Pull, IO-Link, Output 2: PNP, Class 2 Laser, M12 Inte

Manufacturer's No: LE250KQ     Manufacturer: Turck Banner
Laser Displacement Sensor, Range: 100-400, Input: 12-30 V dc, Output 1: Push/Pull, IO-Link, Output 2: PNP, Class 2 Laser, M12 Integral QD

Availability On Request

£954.54
  • Photoelectric Sensor with Diffuse-Mode Laser (Triangulation)
  • Switching Output and IO-Link
  • Operating Voltage: 12-30 VDC
  • Max. Range: 400 mm
  • 2-line, 8-segment Display
  • Rotatable Connector: Male M12 x 1, 5-pin
  • Laser Class 2, Red, 650 nm
  • Resolution at 100-250 mm Distance: < 0.02 mm
  • Resolution at 250-400 mm Distance: < 0.2 mm
  • 1 x PNP Switching Output with IO-Link Communication

Read more

  • Transmission of Process Value and Parametrization via IO-Link


Product

Manufacturer Material ID -
LE250KQ
Net Weight -
0.24kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216
Turck Banner

Availability On Request

£954.54
