50147140

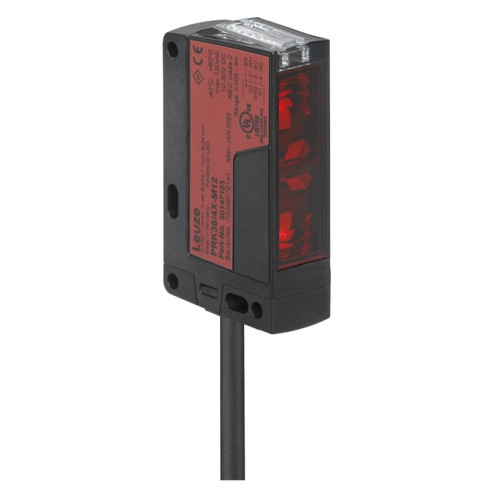

Operating range limit: 0 ... 100 m; Supply voltage: 10 ... 30 V, DC; Digital switching outputs: 1 Piece(s); Switching output 1: Tr

Manufacturer's No: LE36.1/2     Manufacturer: Leuze
Operating range limit: 0 ... 100 m; Supply voltage: 10 ... 30 V, DC; Digital switching outputs: 1 Piece(s); Switching output 1: Transistor, NPN, Light switching; Switching frequency: 300 Hz; Connecti

Availability On Request

£79.00
  • Operating range limit: 0
  • 100 m
  • Supply voltage: 10
  • 30 V DC
  • Digital switching outputs: 1 piece
  • Switching output 1: Transistor, NPN, Light switching
  • Switching frequency: 300 Hz
  • Connection: Cable, 2000 mm, 3-wire
  • Design: Cubic housing
  • Dimensions: 20.5 mm x 76.3 mm x 44 mm

Read more

  • Housing material: Plastic
  • Operational controls: 270° potentiometer
  • Ambient temperature, operation: -40°C to 60°C
  • Degree of protection: IP 67

Accessories

Others



Product

Manufacturer Material ID -
LE36.1/2
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
DE
UNSPSC -
39121528

Technical Specification

Thumbnail of product picture -
Ambient temperature -
-40 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height of sensor -
76.3 Millimetre
Housing material -
Plastic
Laser protection class -
None
Length of sensor -
44 Millimetre
Material of cable sheath -
Polyurethane (PUR)
Material of optical surface -
Plastic
Max. output current at protected output -
0 Milliampere
Max. switching distance -
100000 Millimetre
Maximum output current -
100 Milliampere
Min. reflector distance -
500 Millimetre
Number of protected contact energized outputs -
0
Number of protected semiconductor outputs -
0
Number of semiconductor outputs with signalling function -
1
Operation agent-safety class -
Safety class 3
Rated control supply voltage at DC -
10 Volt
Rated switching distance -
80000 Millimetre
Reaction time -
1.66 Millisecond
Scope of delivery of the one-way system -
Receiver
Sensing mode -
Light switching
Setting procedure -
Manual adjustment
Switching frequency -
300 Hertz
Switching voltage of OSSD at state "high" -
0 Volt
Transmission range of the safety field -
0.5 Metre
Type of electric connection -
Cable
Type of switch function -
Other
Type of switching output -
NPN
Voltage type -
DC
Width sensor -
20.5 Millimetre
Leuze

Availability On Request

£79.00
