3095373

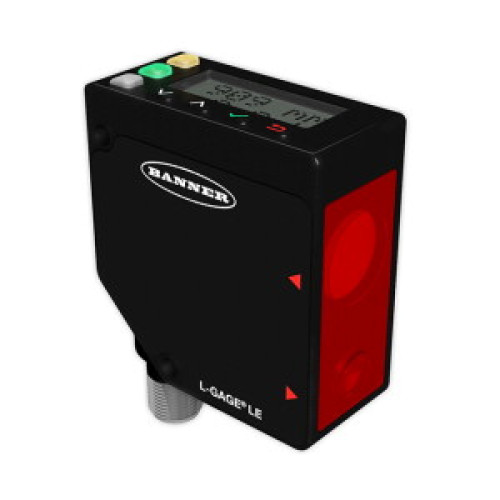

Laser Displacement Sensor, Range: 100-1000, Input: 12-30 V dc, Output: Analog: 4-20 mA, Discrete: NPN/PNP Configurable, Class 1 La

Manufacturer's No: LE550IC1Q     Manufacturer: Turck Banner
Laser Displacement Sensor, Range: 100-1000, Input: 12-30 V dc, Output: Analog: 4-20 mA, Discrete: NPN/PNP Configurable, Class 1 Laser, M12 Integral QD

Availability On Request

£781.24
  • Photoelectric Sensor (Diffuse-Mode Laser Sensor)
  • Analog Output: 4-20 mA
  • Operating Voltage: 12-30 VDC
  • Max. Range: 1000 mm
  • Laser Class 1, 650 nm
  • Resolution: < 0.5 mm at 100-600 mm distance, < 1 mm at 600-1000 mm distance
  • 2-line 8-segment display
  • Rotatable male M12 x 1, 5-pin connector
  • PNP/NPN-switching output, switchable


Product

Manufacturer Material ID -
LE550IC1Q
Net Weight -
0.26kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

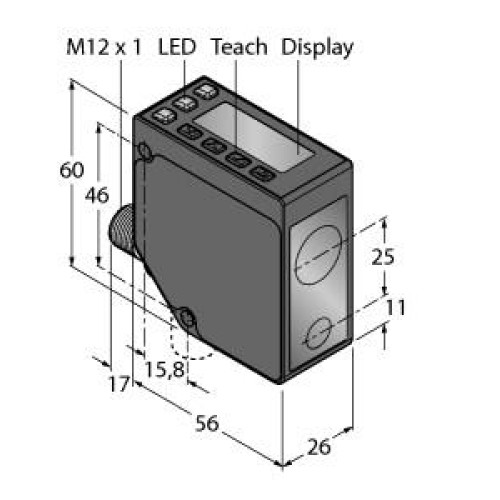

Technical Specification

Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height of sensor -
77 Millimetre
Housing material -
Other
Laser protection class -
Class 1
Length of sensor -
56 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Supply voltage -
12 Volt
Switching frequency -
250 Hertz
Type of analogy output -
4 mA ... 20 mA
Type of electric connection -
Connector M12
Type of light -
Polarity free red light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Width sensor -
26 Millimetre
Turck Banner

Availability On Request

£781.24
