3097765

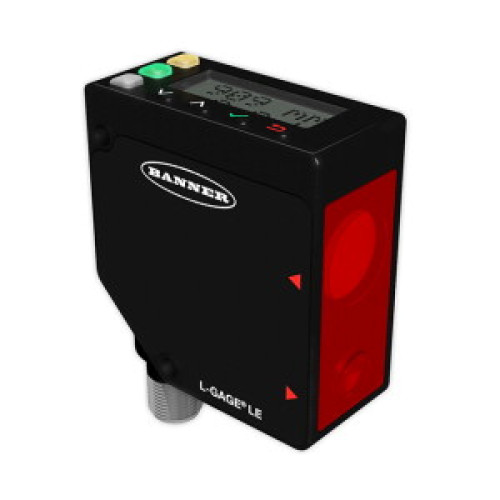

Laser Displacement Sensor, Range: 100-1000, Input: 12-30 V dc, Output 1: Push/Pull, IO-Link, Output 2: PNP, Class 1 Laser, M12 Int

Manufacturer's No: LE550KC1Q     Manufacturer: Turck Banner
Laser Displacement Sensor, Range: 100-1000, Input: 12-30 V dc, Output 1: Push/Pull, IO-Link, Output 2: PNP, Class 1 Laser, M12 Integral QD

Availability On Request

£781.24
  • Photoelectric Sensor with Diffuse-Mode Laser (Triangulation)
  • Operating Voltage: 12-30 VDC
  • Max. Range: 1000 mm
  • 2-Line 8-Segment Display
  • Rotatable Male M12 × 1, 5-Pin Connector
  • Laser Class 1, Red, 650 nm
  • Resolution at 100-600 mm Distance: < 0.5 mm
  • Resolution at 600-1000 mm Distance: < 1 mm
  • 1 × PNP Switching Output with IO-Link Communication
  • IO-Link for Transmission of Process Value and Parametrization


Product

Manufacturer Material ID -
LE550KC1Q
Net Weight -
0.26kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39101628

Technical Specification

Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height of sensor -
77 Millimetre
Housing material -
Other
Laser protection class -
Class 1
Length of sensor -
56 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Standard for interfaces -
Other
Supply voltage -
12 Volt
Switching frequency -
250 Hertz
Type of electric connection -
Connector M12
Type of light -
Polarity free red light
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
PNP
Width sensor -
26 Millimetre
Turck Banner

Availability On Request

£781.24
