1590605

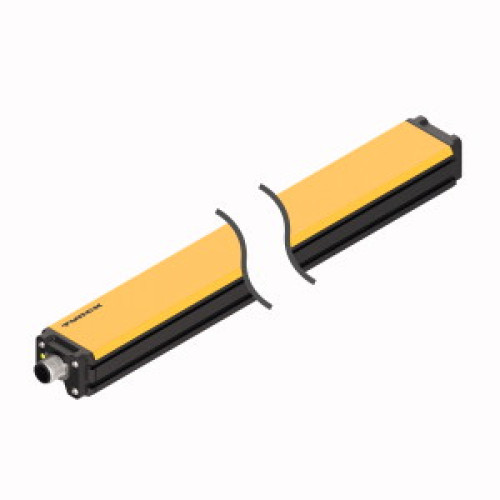

Inductive Linear Position Sensor, IO-Link

Manufacturer's No: LI400P0-Q25LM0-ELIUPN8X3-H1151     Manufacturer: Turck Banner
Inductive Linear Position Sensor, IO-Link

Availability On Request

£635.05
  • Inductive Linear Position Sensor
  • Operating voltage: 15-30 VDC
  • Measuring range: 400 mm
  • Rectangular design made of aluminium/plastic
  • Versatile mounting options
  • LED display for measuring range
  • Immune to electromagnetic interference
  • Extremely short blind zones
  • Programmable analog measuring range with 16-bit resolution
  • Analog output: 0-10 V (factory setting)

Read more

  • All functions programmable via IO-Link/PACTware
  • 4 programmable switching zones
  • Programmable current and voltage output functions
  • NC/NO programmable functions
  • Available in NPN or PNP version
  • Process value transmitted via 16-bit IO-Link telegram
  • M12 x 1 male, 5-pin connector


Product

Manufacturer Material ID -
LI400P0-Q25LM0-ELIUPN8X3-H1151
Net Weight -
0.71kg

Additional Product Information

Commodity Code -
90318020000
Country of Origin -
DE
UNSPSC -
39121527
Turck Banner

Availability On Request

£635.05
