100001844

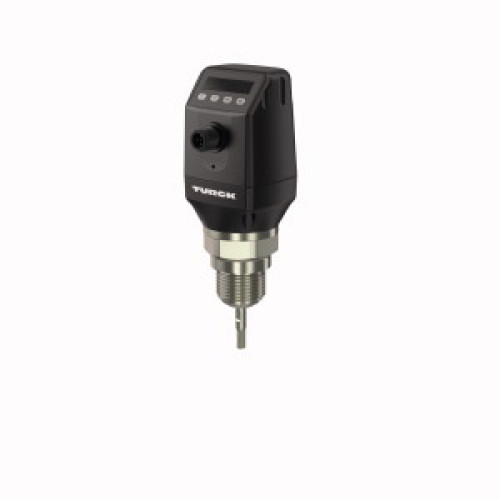

Level Sensor, With Analog Output and 2 ×  Switching Outputs

Manufacturer's No: LS-551-0000-LIU22PN8X-H1151     Manufacturer: Turck Banner
Level Sensor, With Analog Output and 2 ×  Switching Outputs

Availability On Request

£513.32
  • Level sensor with analog output and 2 switching outputs
  • Operating voltage: 12-30 VDC
  • Level detection and continuous level measurement
  • Easy to service and deploy without calibration
  • Flexible probes can be shortened
  • Compact, rotatable housing with display for easy installation
  • Process temperature up to 100°C
  • Process pressure up to 10 bar
  • Small blind zones, ideal for small containers
  • Coaxial tube available for non-metallic tanks

Read more

  • IO-Link 1.1 compatible
  • 1 analog output: 4-20 mA/0-10 V
  • 2 PNP/IO-Link or PNP/NPN transistor outputs, switchable
  • Dielectric constant: ? 5 for mono-rod probe/rope probe or ? 1.8 with coaxial tube


Product

Manufacturer Material ID -
LS-551-0000-LIU22PN8X-H1151
Net Weight -
0.56kg

Additional Product Information

Commodity Code -
90261029000
Country of Origin -
DE
UNSPSC -
32151701
Turck Banner

Availability On Request

£513.32
