73554 {B}

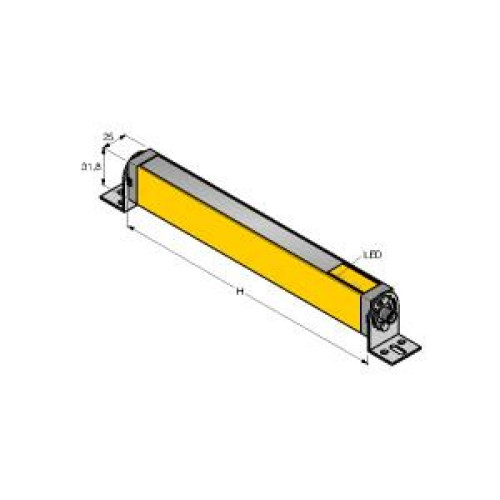

EZ-SCREEN TYPE 2, LATCH Output, RECEIVER, 30 Resolution, 150 Defined Area, 15 m Range, Yellow Housing, 8-pin M12 Integral QD, Moun

Manufacturer's No: LS2LR30-150Q8     Manufacturer: Turck Banner
EZ-SCREEN TYPE 2, LATCH Output, RECEIVER, 30 Resolution, 150 Defined Area, 15 m Range, Yellow Housing, 8-pin M12 Integral QD, Mounting Hardware Included

Availability On Request

£432.87
  • Light screen for machine safety applications
  • Receiver with operating voltage: 20-28 VDC
  • Maximum range: 15000 mm
  • M12 x 1 male connector, 8-pin
  • Protection class: IP65
  • Scan field: 150 mm
  • Resolution: 30 mm
  • Internal testing in 500-ms cycle
  • Range: 15 m
  • Operating voltage: 24 VDC ± 15%

Read more

  • Switching output with restart interlock (LATCH)
  • Muting not supported
  • Type 2 according to IEC 61496-1, -2
  • Category 2 PL d according to EN ISO 13849-1
  • SIL 2 according to IEC 61508


Product

Manufacturer Material ID -
LS2LR30-150Q8
Net Weight -
0.16kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216
Turck Banner

Availability On Request

£432.87
