50148179

Special version: Wash-Down design, Activation input; Operating range limit: 0.05 ... 10 m; Light source: LED, Red; Supply voltage:

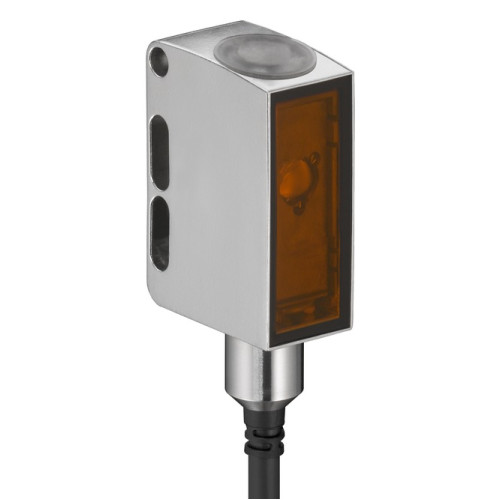

Manufacturer's No: LS55C/8X-5000     Manufacturer: Leuze
Special version: Wash-Down design, Activation input; Operating range limit: 0.05 ... 10 m; Light source: LED, Red; Supply voltage: 10 ... 30 V, DC; Connection: Cable, 5.000 mm, 4 -wire; Design, housin

Availability Back Order

POA
  • Special version: Wash-Down design, Activation input
  • Operating range limit: 0.05 m to 10 m
  • Light source: Red LED
  • Supply voltage: 10 V to 30 V DC
  • Connection: Cable, 5000 mm, 4-wire
  • Housing design: Cubic
  • Dimensions: 14 mm x 35.4 mm x 25 mm
  • Housing material: Stainless steel
  • Ambient temperature for operation: -40°C to 70°C
  • Degree of protection: IP 68, IP 67, IP 69K

Accessories

Others



Product

Manufacturer Material ID -
LS55C/8X-5000
Net Weight -

Additional Product Information

Commodity Code -
85365019
Country of Origin -
DE
UNSPSC -
32121702

Technical Specification

Thumbnail of product picture -
Ambient temperature -
-40 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP68
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height of sensor -
35.4 Millimetre
Housing material -
Metal
Laser protection class -
None
Length of sensor -
25 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Max. output current at protected output -
0 Milliampere
Max. switching distance -
10000 Millimetre
Min. reflector distance -
50 Millimetre
Number of protected contact energized outputs -
0
Number of protected semiconductor outputs -
0
Operation agent-safety class -
Safety class 3
Rated control supply voltage at DC -
10 Volt
Rated switching distance -
8500 Millimetre
Scope of delivery of the one-way system -
Transmitter
Switching voltage of OSSD at state "high" -
0 Volt
Transmission range of the safety field -
0.05 Metre
Type of electric connection -
Cable
Type of light -
Polarity free red light
Type of switch function -
Other
Voltage type -
DC
Wavelength of the sensor -
645 Nanometre
Width sensor -
14 Millimetre
Leuze

Availability Back Order

POA
