50147785

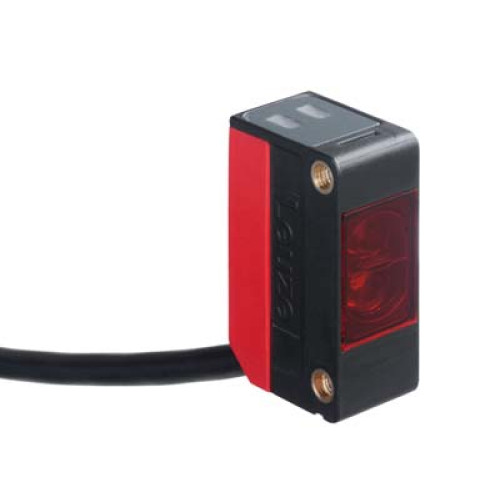

Operating range limit: 0 ... 15 m; Light source: LED, Red; Supply voltage: 10 ... 30 V, DC; Connection: Cable with connector, 200

Manufacturer's No: LS5/XX-200-M8.1     Manufacturer: Leuze
Operating range limit: 0 ... 15 m; Light source: LED, Red; Supply voltage: 10 ... 30 V, DC; Connection: Cable with connector, 200 mm, Snap-in, M8, Plastic, 4 -pin; Design, housing: Cubic; Dimensions:

Availability On Request

£56.00
  • Operating Range Limit: 0 to 15 m
  • Light Source: Red LED
  • Supply Voltage: 10 to 30 V DC
  • Connection: 200 mm Cable with Snap-in M8 Plastic Connector (4-pin)
  • Housing Design: Cubic
  • Dimensions: 14 mm x 32.5 mm x 20.2 mm
  • Housing Material: Plastic
  • Ambient Temperature Range: -40 to 60 °C
  • Degree of Protection: IP67


Product

Manufacturer Material ID -
LS5/XX-200-M8.1
Net Weight -

Additional Product Information

Commodity Code -
85365019
Country of Origin -
DE
UNSPSC -
39121528

Technical Specification

Voltage type -
DC
Housing material -
Plastic
Ambient temperature -
-40 Degrees celsius
Number of protected semiconductor outputs -
0
Number of protected contact energized outputs -
0
Type of electric connection -
Cable with connector
Type of switch function -
Other
Rated control supply voltage at DC -
10 Volt
Operation agent-safety class -
Safety class 3
Explosion safety category for gas -
None
Explosion safety category for dust -
None
Construction type housing -
Cuboid
Laser protection class -
None
Type of light -
Polarity free red light
Scope of delivery of the one-way system -
Transmitter
Max. output current at protected output -
0 Milliampere
Min. reflector distance -
0 Millimetre
Transmission range of the safety field -
0 Metre
Switching voltage of OSSD at state "high" -
0 Volt
Wavelength of the sensor -
620 Nanometre
Material of optical surface -
Plastic
Material of cable sheath -
Polyurethane (PUR)
Degree of protection (IP rating) -
IP67
Width sensor -
14 Millimetre
Height of sensor -
32.5 Millimetre
Length of sensor -
20.2 Millimetre
Max. switching distance -
15000 Millimetre
Rated switching distance -
10000 Millimetre
Leuze

Availability On Request

£56.00
