7TCA091140R0543

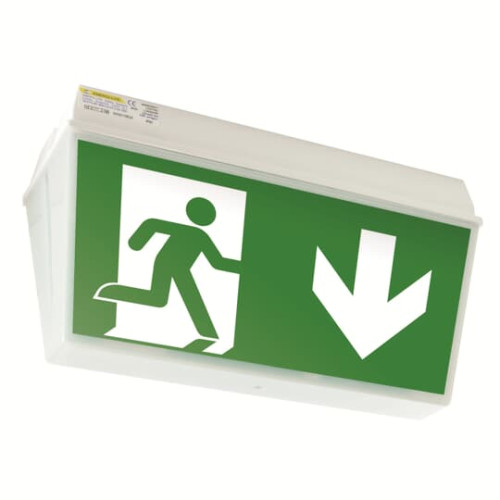

LED 2W LTC W/FORCE WHT/NO DIFF

Manufacturer's No: LTCWWA1LS1X     Manufacturer: ABB
LED 2W LTC W/FORCE WHT/NO DIFF

Availability On Request

£191.02
  • Weatherforce Exit Sign
  • Lamp Type: 1 LED 2W
  • Lamp Output: 207 Lumens
  • Input Voltage: 220-240V AC 50/60Hz
  • Operating Voltage: 230V
  • Environment Temperature: 0-40°C


Product

Manufacturer Material ID -
LTCWWA1LS1X
Net Weight -
1.47kg

Additional Product Information

Commodity Code -
9405616000
Country of Origin -
GB
UNSPSC -
39122330

Technical Specification

Cover material -
Without cover
Lamp included -
Energy efficiency class of integrated lamp -
A++, A+, A (LED)
Colour temperature -
4000 Kelvin
Conductor cross section -
2.5 Square millimetre
Connection type -
Screw connection
Control gear -
LED driver constant current
Degree of protection (IP rating) -
IP65
Function -
Escape route signage
Height/depth -
100 Millimetre
Housing colour -
White
Housing material -
Steel
Impact resistance (IK rating) -
IK10
Length -
400 Millimetre
Light distribution -
Diffuser
Light source included -
Light source type -
LED non-replaceable
Luminous flux in standby mode -
207 Lumen
Maximum system power -
4.4 Watt
Monitoring equipment -
Safety module for monitoring (central feeded system)
Mounting method -
Wall surface mounted / ceiling surface mounting
Nominal voltage -
220 Volt
Number of lighting heads -
1
Number of poles -
3
Power factor -
0.92
Power supply system -
Central (central battery)
Protection class -
I
Rated ambient temperature acc. IEC62722-2-1 -
0 Degrees celsius
Replaceable control gear -
Type of cabling -
Ending
Type of indicator -
Single/double-sided
Viewing distance -
27 Metre
Voltage type -
AC
Width -
140 Millimetre
With remote control -
ABB

Availability On Request

£191.02
