7TCA091140R0545

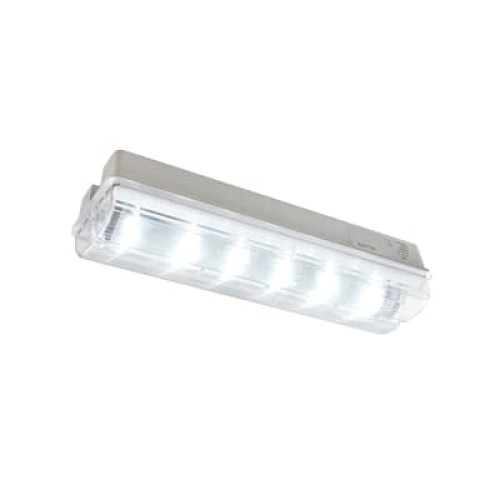

LED 2W LTC DAYLITE WHT/CLR

Manufacturer's No: LTCXXW1LS11     Manufacturer: ABB
LED 2W LTC DAYLITE WHT/CLR

Availability On Request

£270.90
  • Lamp Type: 1 LED 2W
  • Lamp Output: 251 Lumens
  • Power Supply: 220-240V AC, 50/60Hz
  • Operation Voltage: 230V
  • Environment Temperature: 0-40°C


Product

Manufacturer Material ID -
LTCXXW1LS11
Net Weight -
0.73kg

Additional Product Information

Commodity Code -
9405616000
Country of Origin -
GB
UNSPSC -
39122330

Technical Specification

Lamp included -
Energy efficiency class of integrated lamp -
A++, A+, A (LED)
Luminous flux in standby mode -
251 Lumen
Colour temperature -
4000 Kelvin
Conductor cross section -
2.5 Square millimetre
Connection type -
Screw connection
Control gear -
LED driver constant current
Cover material -
Plastic transparent
Degree of protection (IP rating) -
IP65
Function -
Escape route lighting/signage
Height/depth -
72 Millimetre
Housing colour -
White
Housing material -
Plastic
Impact resistance (IK rating) -
IK10
Labelling type -
Sticker
Length -
342 Millimetre
Light distribution -
Diffuser
Light source included -
Light source type -
LED non-replaceable
Maximum system power -
4.4 Watt
Monitoring equipment -
Safety module for monitoring (central feeded system)
Mounting method -
Wall surface mounted / ceiling surface mounting
Nominal voltage -
220 Volt
Number of lighting heads -
1
Number of poles -
3
Power factor -
0.92
Power supply system -
Central (central battery)
Protection class -
I
Rated ambient temperature acc. IEC62722-2-1 -
0 Degrees celsius
Rated luminous flux acc. IEC 62722-2-1 -
251 Lumen
Replaceable control gear -
Type of cabling -
Ending
Type of indicator -
Single-sided
Viewing distance -
23 Metre
Voltage type -
AC
Width -
98 Millimetre
With remote control -
ABB

Availability On Request

£270.90
