1SBH137001R1140

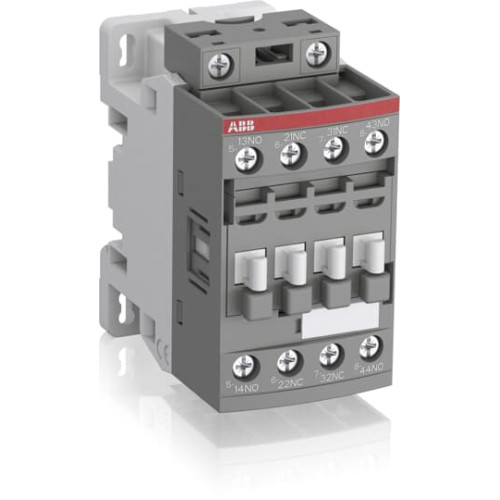

NF40E-11 24-60V50/60HZ 20-60VDC Contactor Relay

Manufacturer's No: NF40E-11     Manufacturer: ABB
NF40E-11 24-60V50/60HZ 20-60VDC Contactor Relay

Availability Back Order

£42.66
  • NF40E-11 4-pole Contactor Relay
  • Suitable for switching auxiliary and control circuits
  • Wide control voltage range: 24-500 V AC, 20-500 V DC
  • Can manage large control voltage variations
  • One coil compatible with various control voltages worldwide
  • Built-in surge protection, no need for additional surge suppressors
  • Control Circuit: AC or DC operated
  • Accessories available for customization
  • NF..E-11 type not suitable for direct control by PLC-output
  • Consult ABB representative for availability in specific countries


Product

Manufacturer Material ID -
NF40E-11
Net Weight -
0.27kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
FR
Minimum Order Quantity -
1
UNSPSC -
39122331

Technical Specification

Rated control supply voltage Us at AC 50HZ -
24 Volt
Rated control supply voltage Us at AC 60HZ -
24 Volt
Rated control supply voltage Us at DC -
20 Volt
Connection type auxiliary circuit -
Screw connection
Depth -
77 Millimetre
Height -
86 Millimetre
Mounting method -
DIN-rail/screw
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally closed contact, delayed switching -
0
Number of auxiliary contacts as normally open contact -
4
Number of auxiliary contacts as normally open contact, leading -
0
Operating voltage at AC 50 Hz -
690 Volt
Operating voltage at AC 60 Hz -
690 Volt
Operating voltage at DC -
6 Volt
Rated control supply voltage at AC 50 Hz -
24 Volt
Rated control supply voltage at AC 60 Hz -
24 Volt
Rated control supply voltage at DC -
20 Volt
Rated operation current -
3 Ampere
Rated operation current Ie, 400 V -
3 Ampere
Rated switch current -
4 Ampere
Voltage type (operating voltage) -
AC
Voltage type for actuating -
AC/DC
Width -
45 Millimetre
ABB

Availability Back Order

£42.66
