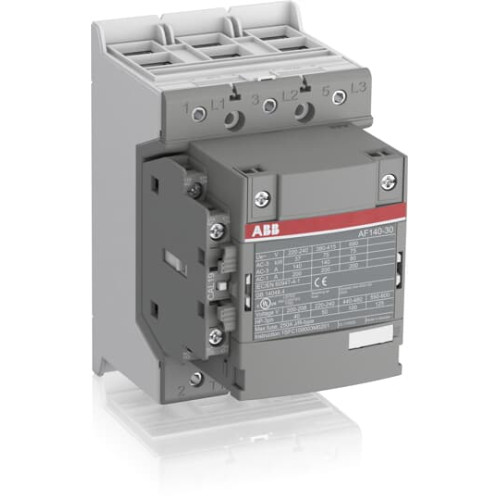

1SFL447001R1311

75kW (140A) 100-250V AC/DC, 1NO + 1NC, AF140-30-11-13

Manufacturer's No: AF140-30-11-13     Manufacturer: ABB
75kW (140A) 100-250V AC/DC, 1NO + 1NC, AF140-30-11-13

Availability Back Order

£521.39
  • Contact Type: 3 pole contactor
  • Voltage Range: 100-250V AC/DC
  • Current Rating: 140A
  • Power Rating: Up to 75 kW / 400V AC or 100 hp / 480V UL
  • Auxiliary Contacts: 1NO + 1NC pre-mounted
  • Surge Protection: Built-in
  • Control Voltage Range: 100-250V 50/60Hz and DC
  • Additional Features: Double clamp, wide control voltage range, block type design
  • Applications: Suitable for controlling motors and switching power circuits up to 200A
  • Compatibility: Can be easily extended with add-on auxiliary contact blocks and various accessories


Product

Manufacturer Material ID -
AF140-30-11-13
Net Weight -
1.64kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
SE
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

-
ABB
Rated operation current Ie at AC-4, 400 V -
- Ampere
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated control supply voltage Us at AC 50HZ -
100 Volt
Rated control supply voltage Us at AC 60HZ -
100 Volt
Rated control supply voltage Us at DC -
100 Volt
Depth -
126 Millimetre
Height -
150 Millimetre
Number of auxiliary contacts as normally closed contact -
1
Number of auxiliary contacts as normally open contact -
1
Number of main contacts as normally open contact -
3
Number of normally closed contacts as main contact -
0
Operating voltage at AC 50 Hz -
690 Volt
Operating voltage at AC 60 Hz -
690 Volt
Rated control supply voltage at AC 50 Hz -
100 Volt
Rated control supply voltage at AC 60 Hz -
100 Volt
Rated control supply voltage at DC -
100 Volt
Rated operation current Ie at AC-1, 400 V -
200 Ampere
Rated operation current Ie at AC-3, 400 V -
140 Ampere
Rated operation power at AC-3, 400 V -
75 Kilowatt
Rated operation power NEMA -
37.285 Kilowatt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
AC/DC
Width -
90 Millimetre
ABB

Availability Back Order

£521.39
