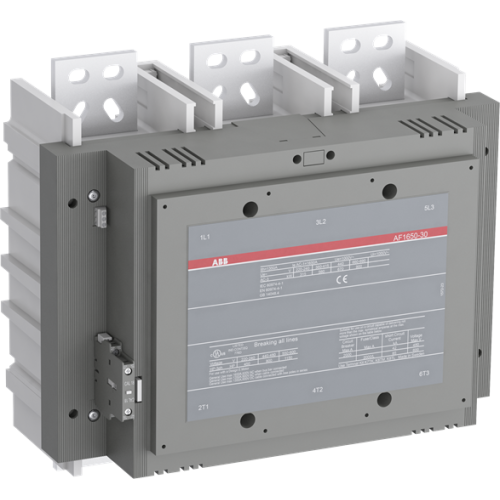

1SFL677001R7011

560kW (1050A) 100-250V AC/DC, 1NO + 1NC, AF1650-30-11

Manufacturer's No: AF1650-30-11     Manufacturer: ABB
560kW (1050A) 100-250V AC/DC, 1NO + 1NC, AF1650-30-11

Availability Back Order

£7,947.87
  • Contactor model: AF1650-30-11-70
  • 3-pole contactor suitable for 1000V IEC or UL applications
  • Rated for motors up to 560 kW / 400V AC (AC-3) or 900 hp / 480V UL
  • Switching power circuits up to 1650A (AC-1) or 1650A UL general use
  • Wide control voltage range: 100-250V AC/DC
  • Built-in surge protection for added reliability
  • Compact block type design with pre-mounted auxiliary contacts and Main Circuit Bars
  • Can be easily extended with add-on auxiliary contact blocks and various accessories


Product

Manufacturer Material ID -
AF1650-30-11
Net Weight -
42.00kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
SE
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

-
ABB
Rated operation current Ie at AC-4, 400 V -
- Ampere
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated control supply voltage Us at AC 50HZ -
100 Volt
Rated control supply voltage Us at AC 60HZ -
100 Volt
Rated control supply voltage Us at DC -
100 Volt
Rated operation current Ie at AC-3, 400 V -
1060 Ampere
Depth -
244 Millimetre
Height -
392 Millimetre
Number of auxiliary contacts as normally closed contact -
1
Number of auxiliary contacts as normally open contact -
1
Number of main contacts as normally open contact -
3
Number of normally closed contacts as main contact -
0
Operating voltage at AC 50 Hz -
1000 Volt
Operating voltage at AC 60 Hz -
1000 Volt
Rated control supply voltage at AC 50 Hz -
100 Volt
Rated control supply voltage at AC 60 Hz -
100 Volt
Rated control supply voltage at DC -
100 Volt
Rated operation current Ie at AC-1, 400 V -
1650 Ampere
Rated operation power at AC-3, 400 V -
560 Kilowatt
Rated operation power NEMA -
335.565 Kilowatt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
AC/DC
Width -
438 Millimetre
ABB

Availability Back Order

£7,947.87
