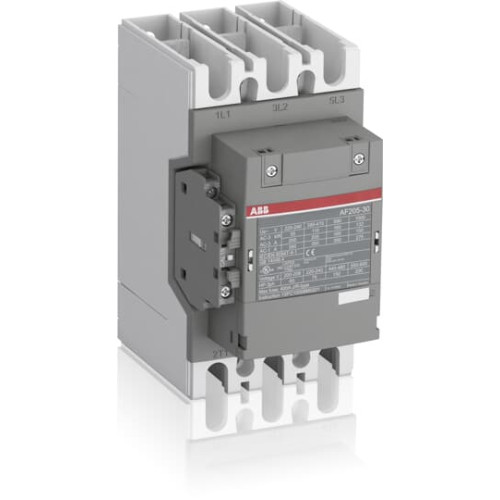

1SFL527002R1311

110kW (205A) 100-250V AC/DC, 1NO + 1NC, AF205-30-11-13

Manufacturer's No: AF205-30-11-13     Manufacturer: ABB
110kW (205A) 100-250V AC/DC, 1NO + 1NC, AF205-30-11-13

Availability Back Order

£796.16
  • Contact Type: 3 pole contactor
  • Voltage Range: 100-250V AC/DC
  • Maximum Motor Power: 110 kW / 400V AC or 150 hp / 480V UL
  • Maximum Switching Power: 350A AC-1 or 300A UL
  • Control Voltage Range: 100-250V 50/60Hz and DC
  • Built-in Surge Protection
  • Easily extendable with add-on auxiliary contact blocks
  • Wide range of accessories available
  • Compact block type design
  • Suitable for motors and power circuits


Product

Manufacturer Material ID -
AF205-30-11-13
Net Weight -
3.23kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
SE
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

-
ABB
Rated operation current Ie at AC-4, 400 V -
- Ampere
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated control supply voltage Us at AC 50HZ -
100 Volt
Rated control supply voltage Us at AC 60HZ -
100 Volt
Rated control supply voltage Us at DC -
100 Volt
Depth -
152 Millimetre
Height -
196 Millimetre
Number of auxiliary contacts as normally closed contact -
1
Number of auxiliary contacts as normally open contact -
1
Number of main contacts as normally open contact -
3
Number of normally closed contacts as main contact -
0
Operating voltage at AC 50 Hz -
1000 Volt
Operating voltage at AC 60 Hz -
1000 Volt
Rated control supply voltage at AC 50 Hz -
100 Volt
Rated control supply voltage at AC 60 Hz -
100 Volt
Rated control supply voltage at DC -
100 Volt
Rated operation current Ie at AC-1, 400 V -
350 Ampere
Rated operation current Ie at AC-3, 400 V -
205 Ampere
Rated operation power at AC-3, 400 V -
110 Kilowatt
Rated operation power NEMA -
55.9275 Kilowatt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
AC/DC
Width -
105 Millimetre
ABB

Availability Back Order

£796.16
