1SBL407001R1300

45kW (96A) 100-250V AC/DC, 1NO + 1NC, AF96-30-00.13

Manufacturer's No: AF96-30-00-13     Manufacturer: ABB
45kW (96A) 100-250V AC/DC, 1NO + 1NC, AF96-30-00.13

Availability Back Order

£431.83

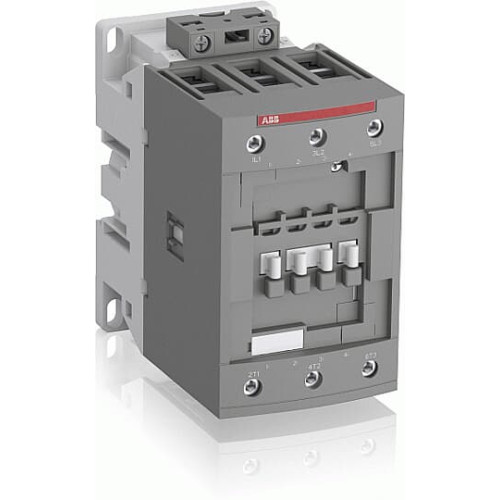

  • 3-pole contactor AF96-30-00.13
  • Rated for 45 kW / 400 V AC motors (AC-3) or 60 hp / 480 V UL
  • Suitable for switching power circuits up to 130 A (AC-1) or 115 A UL general use
  • Wide control voltage range: 100-250 V 50/60 Hz and DC
  • Built-in surge protection
  • Screw terminals for easy installation
  • Compact block type design
  • Compatible with add-on auxiliary contact blocks and various accessories


Product

Manufacturer Material ID -
AF96-30-00-13
Net Weight -
1.29kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
FR
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

-
ABB
Rated operation current Ie at AC-4, 400 V -
- Ampere
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated control supply voltage Us at AC 50HZ -
100 Volt
Rated control supply voltage Us at AC 60HZ -
100 Volt
Rated control supply voltage Us at DC -
100 Volt
Depth -
116 Millimetre
Height -
125.5 Millimetre
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of main contacts as normally open contact -
3
Number of normally closed contacts as main contact -
0
Operating voltage at AC 50 Hz -
1000 Volt
Operating voltage at AC 60 Hz -
1000 Volt
Rated control supply voltage at AC 50 Hz -
100 Volt
Rated control supply voltage at AC 60 Hz -
100 Volt
Rated control supply voltage at DC -
100 Volt
Rated operation current Ie at AC-1, 400 V -
130 Ampere
Rated operation current Ie at AC-3, 400 V -
105 Ampere
Rated operation power at AC-3, 400 V -
45 Kilowatt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
AC/DC
Width -
70 Millimetre
ABB

Availability Back Order

£431.83
