1SBL177082R1322

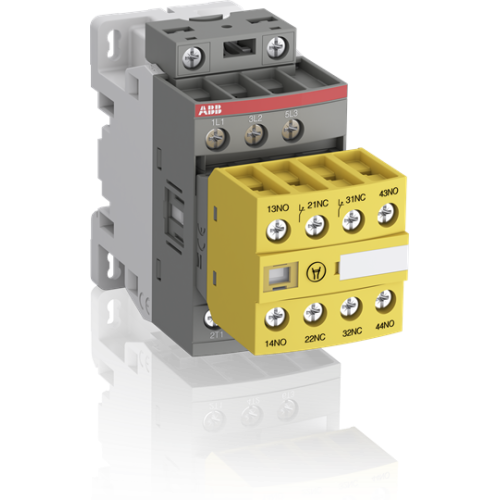

AFS16-30-22-13 100-250V50/60HZ-DC Contactor

Manufacturer's No: AFS16-30-22-13     Manufacturer: ABB
AFS16-30-22-13 100-250V50/60HZ-DC Contactor

Availability Back Order

£89.39
  • AFS16-30-22-13 3-pole contactor
  • Voltage range: 100-250V 50/60Hz
  • Front mounted auxiliary contact blocks: 2 N.O + 2 N.C.
  • Motor control: up to 7.5 kW / 400V AC or 10 hp / 480V UL
  • Switching power circuits: up to 30A (AC-1) or 30A UL general use
  • Complies with main standards EN ISO 13849 and EN 62061
  • Yellow low energy auxiliary contact block for status feedback in safety applications
  • Wide control voltage range: 100-250V
  • Built-in surge protection
  • Block type design, easily extendable with add-on auxiliary contact blocks and accessories


Product

Manufacturer Material ID -
AFS16-30-22-13
Net Weight -
0.32kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
FR
UNSPSC -
39121529

Technical Specification

Rated operation current Ie at AC-4, 400 V -
- Ampere
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated control supply voltage Us at AC 50HZ -
100 Volt
Rated control supply voltage Us at AC 60HZ -
100 Volt
Rated control supply voltage Us at DC -
100 Volt
Depth -
110.5 Millimetre
Height -
86 Millimetre
Number of auxiliary contacts as normally closed contact -
2
Number of auxiliary contacts as normally open contact -
2
Number of main contacts as normally open contact -
3
Number of normally closed contacts as main contact -
0
Operating voltage at AC 50 Hz -
690 Volt
Operating voltage at AC 60 Hz -
690 Volt
Rated control supply voltage at AC 50 Hz -
100 Volt
Rated control supply voltage at AC 60 Hz -
100 Volt
Rated control supply voltage at DC -
100 Volt
Rated operation current Ie at AC-1, 400 V -
30 Ampere
Rated operation current Ie at AC-3, 400 V -
18 Ampere
Rated operation power at AC-3, 400 V -
7.5 Kilowatt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
AC/DC
Width -
45 Millimetre
ABB

Availability Back Order

£89.39
