1SBL237082R1322

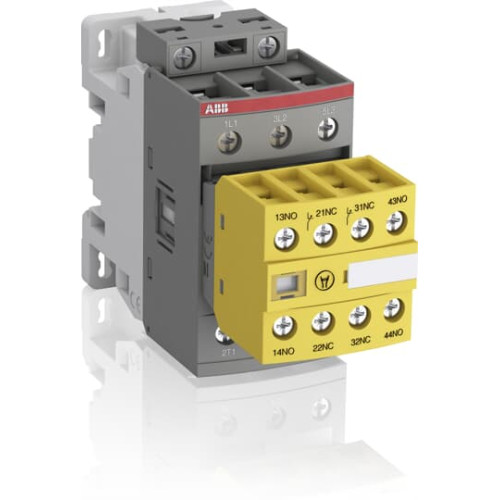

AFS26-30-22-13 100-250V50/60HZ-DC Contactor

Manufacturer's No: AFS26-30-22-13     Manufacturer: ABB
AFS26-30-22-13 100-250V50/60HZ-DC Contactor

Availability Back Order

£111.77
  • AFS26-30-22-13 3-pole contactor
  • Voltage range: 100-250V 50/60Hz
  • Front-mounted auxiliary contact blocks: 2 N.O + 2 N.C.
  • Motor control: up to 11 kW / 400V AC or 15 hp / 480V UL
  • Power circuit switching: up to 45A (AC-1) or 45A UL general use
  • Complies with EN ISO 13849 and EN 62061 standards
  • Yellow low-energy auxiliary contact block for status feedback in safety applications
  • Wide control voltage range for managing voltage variations
  • Surge protection built-in
  • Block type design, extendable with add-on auxiliary contact blocks and accessories


Product

Manufacturer Material ID -
AFS26-30-22-13
Net Weight -
0.36kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
FR
UNSPSC -
39121529

Technical Specification

Rated operation current Ie at AC-4, 400 V -
- Ampere
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated control supply voltage Us at AC 50HZ -
100 Volt
Rated control supply voltage Us at AC 60HZ -
100 Volt
Rated control supply voltage Us at DC -
100 Volt
Depth -
119.5 Millimetre
Height -
86 Millimetre
Number of auxiliary contacts as normally closed contact -
2
Number of auxiliary contacts as normally open contact -
2
Number of main contacts as normally open contact -
3
Number of normally closed contacts as main contact -
0
Operating voltage at AC 50 Hz -
690 Volt
Operating voltage at AC 60 Hz -
690 Volt
Rated control supply voltage at AC 50 Hz -
100 Volt
Rated control supply voltage at AC 60 Hz -
100 Volt
Rated control supply voltage at DC -
100 Volt
Rated operation current Ie at AC-1, 400 V -
45 Ampere
Rated operation current Ie at AC-3, 400 V -
26 Ampere
Rated operation power at AC-3, 400 V -
11 Kilowatt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
AC/DC
Width -
45 Millimetre
ABB

Availability Back Order

£111.77
