1SBL387082R1322

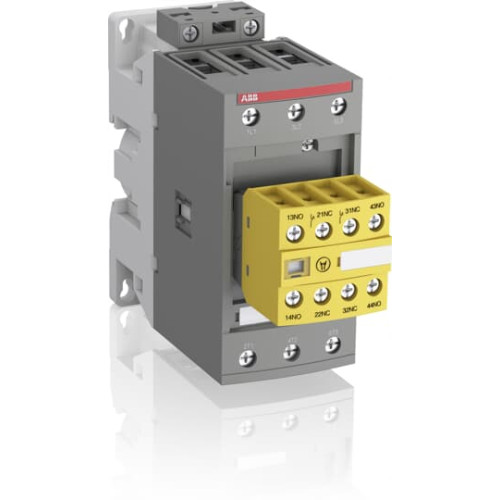

AFS65-30-22-13 100-250V50/60HZ-DC Contactor

Manufacturer's No: AFS65-30-22-13     Manufacturer: ABB
AFS65-30-22-13 100-250V50/60HZ-DC Contactor

Availability Back Order

£312.92
  • AFS65-30-22-13 3-pole contactor
  • Suitable for motors up to 30 kW / 400 V AC or 50 hp / 480 V UL
  • Front-mounted auxiliary contact blocks: 2 N.O + 2 N.C.
  • Control voltage range: 100-250 V, suitable for unstable networks
  • Surge protection built-in
  • Easily integrated into machine systems complying with EN ISO 13849 and EN 62061
  • Yellow low energy auxiliary contact block for status feedback in safety applications
  • Switching power circuits up to 105 A (AC-1) or 90 A UL
  • Compatible with main standards for safe machinery operation
  • Block type design with the option to add auxiliary contact blocks and accessories


Product

Manufacturer Material ID -
AFS65-30-22-13
Net Weight -
1.14kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
FR
UNSPSC -
39121529

Technical Specification

Rated operation current Ie at AC-4, 400 V -
- Ampere
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated control supply voltage Us at AC 50HZ -
100 Volt
Rated control supply voltage Us at AC 60HZ -
100 Volt
Rated control supply voltage Us at DC -
100 Volt
Depth -
144 Millimetre
Height -
125.5 Millimetre
Number of auxiliary contacts as normally closed contact -
2
Number of auxiliary contacts as normally open contact -
2
Number of main contacts as normally open contact -
3
Number of normally closed contacts as main contact -
0
Operating voltage at AC 50 Hz -
690 Volt
Operating voltage at AC 60 Hz -
690 Volt
Rated control supply voltage at AC 50 Hz -
100 Volt
Rated control supply voltage at AC 60 Hz -
100 Volt
Rated control supply voltage at DC -
100 Volt
Rated operation current Ie at AC-1, 400 V -
105 Ampere
Rated operation current Ie at AC-3, 400 V -
65 Ampere
Rated operation power at AC-3, 400 V -
30 Kilowatt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
AC/DC
Width -
55 Millimetre
ABB

Availability Back Order

£312.92
