1SBL397082R1322

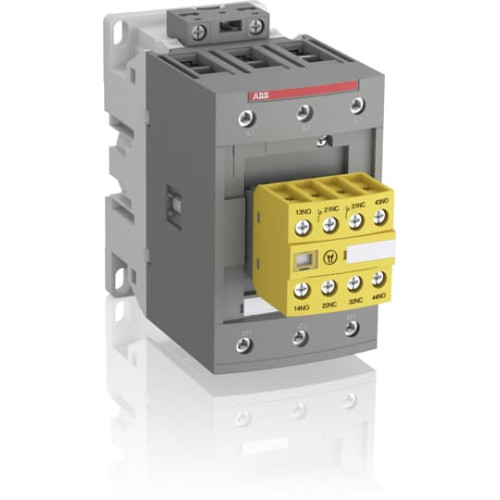

AFS80-30-22-13 100-250V50/60HZ-DC Contactor

Manufacturer's No: AFS80-30-22-13     Manufacturer: ABB
AFS80-30-22-13 100-250V50/60HZ-DC Contactor

Availability Back Order

£394.05
  • AFS80-30-22-13 3-pole contactor
  • Rated for 1000V IEC or 600V UL
  • Front-mounted 2 N.O + 2 N.C. auxiliary contact blocks
  • Controls motors up to 37 kW / 400V AC or 60 hp / 480V UL
  • Switches power circuits up to 125A AC-1 or 105A UL
  • Complies with EN ISO 13849 and EN 62061 standards
  • Yellow low energy auxiliary contact block for status feedback in safety applications
  • Wide control voltage range of 100-250V
  • Built-in surge protection
  • Block type design with option to add auxiliary contact blocks and accessories


Product

Manufacturer Material ID -
AFS80-30-22-13
Net Weight -
1.36kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
FR
UNSPSC -
39121529

Technical Specification

Rated operation current Ie at AC-4, 400 V -
- Ampere
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated control supply voltage Us at AC 50HZ -
100 Volt
Rated control supply voltage Us at AC 60HZ -
100 Volt
Rated control supply voltage Us at DC -
100 Volt
Depth -
149 Millimetre
Height -
125.5 Millimetre
Number of auxiliary contacts as normally closed contact -
2
Number of auxiliary contacts as normally open contact -
2
Number of main contacts as normally open contact -
3
Number of normally closed contacts as main contact -
0
Operating voltage at AC 50 Hz -
690 Volt
Operating voltage at AC 60 Hz -
690 Volt
Rated control supply voltage at AC 50 Hz -
100 Volt
Rated control supply voltage at AC 60 Hz -
100 Volt
Rated control supply voltage at DC -
100 Volt
Rated operation current Ie at AC-1, 400 V -
125 Ampere
Rated operation current Ie at AC-3, 400 V -
80 Ampere
Rated operation power at AC-3, 400 V -
37 Kilowatt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
AC/DC
Width -
70 Millimetre
ABB

Availability Back Order

£394.05
