GJL1313001R0101

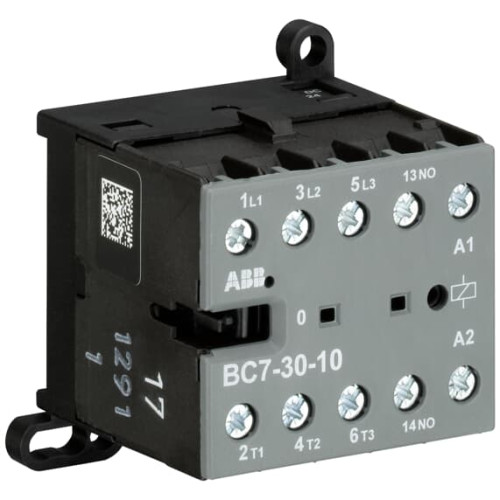

5.5kW (20), Mini Contactor, 1NO, 24VDC

Manufacturer's No: BC7-30-10     Manufacturer: ABB
5.5kW (20), Mini Contactor, 1NO, 24VDC

Availability Back Order

£51.85
  • 5.5kW Mini Contactor
  • 3 pole contactor with 1NO auxiliary contact
  • Rated at 24VDC
  • Suitable for controlling single or three-phase loads up to 5.5 kW (AC-3) and 20 A (AC-1)
  • Compact design with screw terminals
  • Noiseless and hum-free coil
  • Switch position indication
  • Integrated rail or wall mounting option
  • Ideal for applications requiring reliability in limited space


Product

Manufacturer Material ID -
BC7-30-10
Net Weight -
0.18kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

-
ABB
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated operation current Ie at AC-4, 400 V -
- Ampere
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated control supply voltage Us at DC -
24 Volt
Depth -
46.7 Millimetre
Height -
57.5 Millimetre
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
1
Number of main contacts as normally open contact -
3
Number of normally closed contacts as main contact -
0
Operating voltage at AC 50 Hz -
220 Volt
Operating voltage at AC 60 Hz -
220 Volt
Rated control supply voltage at DC -
24 Volt
Rated operation current Ie at AC-1, 400 V -
20 Ampere
Rated operation current Ie at AC-3, 400 V -
12 Ampere
Rated operation power at AC-3, 400 V -
5.5 Kilowatt
Rated operation power NEMA -
2.2371 Kilowatt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
DC
Width -
52.5 Millimetre
