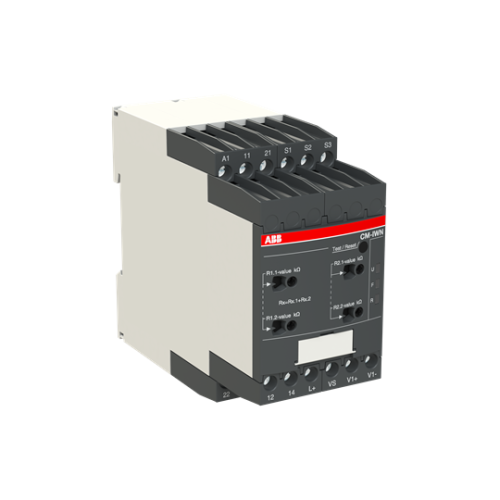

1SVR750660R0200

Insulation Monitor for AC, DC and mixed AC/DC systems. Up to 400VAC & 600VDC, 24-240 V AC/DC input voltage

Manufacturer's No: CM-IWN.1S     Manufacturer: ABB
Insulation Monitor for AC, DC and mixed AC/DC systems. Up to 400VAC & 600VDC, 24-240 V AC/DC input voltage

Availability Back Order

£680.22
  • Insulation Monitor for AC, DC, and mixed AC/DC systems
  • Monitors insulation resistance in unearthed IT AC systems, IT AC systems with galvanically connected DC circuits, or unearthed IT DC systems
  • Voltage range: Up to 400VAC & 600VDC
  • Input voltage: 24-240 V AC/DC
  • Meets IEC 61557-8 standards
  • Measuring range extendable up to 690 V AC and 1000 V DC with coupling unit CM-IVN
  • Configurable for various applications
  • Multi-functional design


Product

Manufacturer Material ID -
CM-IWN.1S
Net Weight -
0.24kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

-
ABB
Response value impedance 2 -
- Kilo-Ohm
Rated control supply voltage Us at AC 50HZ -
24 Volt
Rated control supply voltage Us at AC 60HZ -
24 Volt
Rated control supply voltage Us at DC -
24 Volt
Width -
45 Millimetre
Function -
For mixed system
Height -
85.6 Millimetre
Depth -
104.8 Millimetre
Rated frequency -
15 Hertz
Line capacity -
20 Micro-Farad
Error registration possible -
Type of electric connection -
Screw connection
Rated voltage -
0 Volt
Rated control supply voltage at AC 50 Hz -
24 Volt
Rated control supply voltage at AC 60 Hz -
24 Volt
Rated control supply voltage at DC -
24 Volt
Response value impedance 1 -
1 Kilo-Ohm
Voltage type for actuating -
AC/DC
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Number of contacts as change-over contact -
2
External power supply required -
Operating voltage at AC 50 Hz -
230 Volt
Operating voltage at AC 60 Hz -
230 Volt
Rated operation frequency -
15 Hertz
Rated switch current -
3 Ampere
Supply voltage AC 50 Hz -
24 Volt
Supply voltage AC 60 Hz -
24 Volt
Supply voltage DC -
24 Volt
Voltage measurement range -
0 Volt
Voltage type (operating voltage) -
AC
Voltage type of supply voltage -
AC/DC
ABB

Availability Back Order

£680.22
