1SAM350000R1004

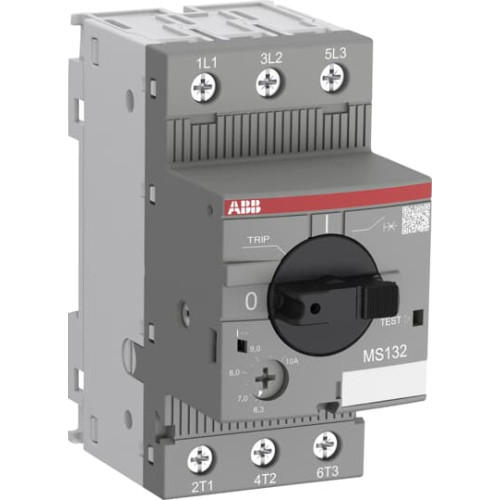

MS132 MPCB for AF09-A30 - 0.4 to 0.63A (100kA)

Manufacturer's No: MS132-0.63     Manufacturer: ABB
MS132 MPCB for AF09-A30 - 0.4  to  0.63A (100kA)

Availability Back Order

£80.82
  • Model: MS132-0.63
  • Rated Operational Current: 0.63 A
  • Compact 45 mm width design
  • Rated Service Short-Circuit Breaking Capacity: 100 kA at 400 VAC
  • Features built-in disconnect function, temperature compensation, and trip-free mechanism
  • Suitable for three- and single-phase applications
  • Lockable handle to prevent unauthorized changes
  • Accessories available: auxiliary contacts, signaling contacts, undervoltage releases, shunt trips, 3-phase bus bars, power in-feed blocks, terminal spacers


Product

Manufacturer Material ID -
MS132-0.63
Net Weight -
0.22kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

-
ABB
Degree of protection (IP) -
IP20
Rated short-circuit breaking capacity lcu at 400 V, AC -
100 kiloampere
Adjustment range undelayed short-circuit release -
7.9 Ampere
Degree of protection (IP rating) -
IP20
Depth -
86.75 Millimetre
Device construction -
Complete device in housing
Height -
90 Millimetre
Number of poles -
3
Overload release current setting -
0.4 Ampere
Phase failure sensitive -
Power loss -
5.1 Watt
Rated operating voltage -
250 Volt
Rated operation power at AC-3, 230 V -
0.18 Kilowatt
Rated operation power at AC-3, 400 V -
0.18 Kilowatt
Rated permanent current Iu -
0.63 Ampere
Rated short-circuit breaking capacity Icu at 400 V, AC -
100 kiloampere
Switch off technique -
Thermomagnetic
Type of control element -
Rotating button
Type of electrical connection of main circuit -
Screw connection
Width -
45 Millimetre
With thermal overload protection -
ABB

Availability Back Order

£80.82
