1SAM350000R1015

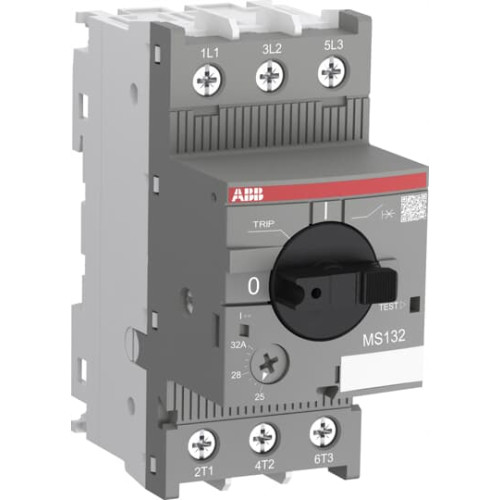

MS132 MPCB for AF09-A30 - 25 to 32A (100kA)

Manufacturer's No: MS132-32     Manufacturer: ABB
MS132 MPCB for AF09-A30 - 25 to 32A (100kA)

Availability Available to order

£176.21
  • MS132-32 manual motor starter for AF09-A30
  • Rated operational current: 32.0 A
  • Rated service short-circuit breaking capacity: 30 kA at 400 VAC
  • Compact 45 mm width design
  • Protects motors from short-circuits, overload, and phase failures
  • Features built-in disconnect function, temperature compensation, and trip-free mechanism
  • Rotary handle with clear switch position indication
  • Suitable for three- and single-phase applications
  • Lockable handle to prevent unauthorized changes
  • Accessories available: auxiliary contacts, signaling contacts, undervoltage releases, shunt trips, 3-phase bus bars, power in-feed blocks, terminal spacers


Product

Manufacturer Material ID -
MS132-32
Net Weight -
0.31kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

-
ABB
Degree of protection (IP) -
IP20
Rated short-circuit breaking capacity lcu at 400 V, AC -
50 kiloampere
Adjustment range undelayed short-circuit release -
480 Ampere
Degree of protection (IP rating) -
IP20
Depth -
86.55 Millimetre
Device construction -
Complete device in housing
Height -
97.8 Millimetre
Number of poles -
3
Overload release current setting -
25 Ampere
Phase failure sensitive -
Power loss -
9.3 Watt
Rated operating voltage -
250 Volt
Rated operation power at AC-3, 230 V -
15 Kilowatt
Rated operation power at AC-3, 400 V -
15 Kilowatt
Rated permanent current Iu -
32 Ampere
Rated short-circuit breaking capacity Icu at 400 V, AC -
50 kiloampere
Switch off technique -
Thermomagnetic
Type of control element -
Rotating button
Type of electrical connection of main circuit -
Screw connection
Width -
45 Millimetre
With thermal overload protection -
ABB

Availability Available to order

£176.21
