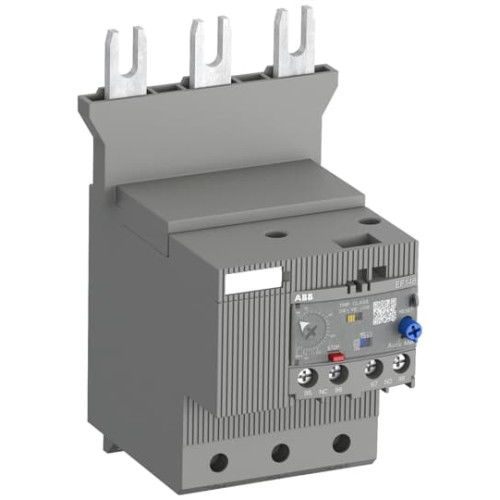

1SAX351001R1101

Electronic Overload 54 to 150, for AF116-AF146

Manufacturer's No: EF146-150     Manufacturer: ABB
Electronic Overload 54 to 150, for AF116-AF146

Availability Available to order

£407.92
  • Electronic overload relay for AF116-AF146
  • Self-supplied, no external supply needed
  • Reliable and fast protection for motors against overload or phase failure
  • Wide setting range with high accuracy
  • High operational temperature range
  • Trip class selection (10E, 20E, 30E)
  • Features temperature compensation, trip contact (NC), signal contact (NO)
  • Automatic or manual reset selectable
  • Trip-free mechanism with STOP and Test function
  • Trip indication for easy monitoring

Read more

  • Direct connection to contactors
  • EF65, EF96, and EF146 models have ATEX and IECEx certification
  • ATEX certification valid from week 42, 2014
  • IECEx certification valid from week 15, 2017


Product

Manufacturer Material ID -
EF146-150
Net Weight -
0.88kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
CN
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

-
ABB
Rated control supply voltage Us at AC 50HZ -
0 Volt
Rated control supply voltage Us at AC 60HZ -
0 Volt
Rated control supply voltage Us at DC -
0 Volt
Voltage type for actuating -
Selfsupplied
Adjustable current range -
54 Ampere
Depth -
105.2 Millimetre
Height -
150.4 Millimetre
Mounting method -
Direct attachment
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
1
Number of auxiliary contacts as normally open contact -
1
Operating voltage at AC 50 Hz -
1000 Volt
Operating voltage at AC 60 Hz -
1000 Volt
Operating voltage at DC -
1000 Volt
Rated control supply voltage at AC 50 Hz -
0 Volt
Rated control supply voltage at AC 60 Hz -
0 Volt
Rated control supply voltage at DC -
0 Volt
Rated switch current -
150 Ampere
Release class -
Adjustable
Reset function automatic -
Reset function push-button -
Type of electrical connection of main circuit -
Screw connection
Voltage type (operating voltage) -
AC
Width -
89.05 Millimetre
ABB

Availability Available to order

£407.92
