1SAX611001R1101

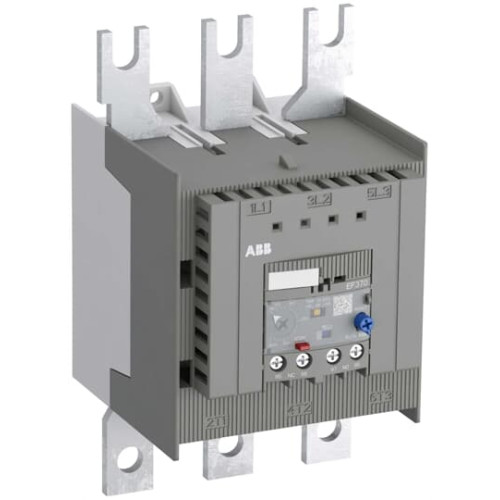

Electronic Overload 115 to 380, for AF265-AF370

Manufacturer's No: EF370-380     Manufacturer: ABB
Electronic Overload 115 to 380, for AF265-AF370

Availability Available to order

£685.42
  • Electronic overload relay for AF265-AF370
  • Self-supplied, no external supply needed
  • Reliable and fast protection for motors against overload or phase failure
  • Wide setting range and high accuracy
  • High operational temperature range
  • Trip class selection (10E, 20E, 30E)
  • Temperature compensation feature
  • Trip contact (NC) and signal contact (NO)
  • Automatic or manual reset selectable
  • Trip-free mechanism with STOP and Test functions

Read more

  • Trip indication for easy monitoring
  • Direct connection to contactors
  • EF370 model has ATEX and IECEx certification
  • ATEX certification valid from week 42, 2014
  • IECEx certification valid from week 15, 2017


Product

Manufacturer Material ID -
EF370-380
Net Weight -
1.71kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
CN
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

-
ABB
Rated control supply voltage Us at AC 50HZ -
0 Volt
Rated control supply voltage Us at AC 60HZ -
0 Volt
Rated control supply voltage Us at DC -
0 Volt
Voltage type for actuating -
Selfsupplied
Adjustable current range -
115 Ampere
Depth -
122.8 Millimetre
Height -
187.6 Millimetre
Mounting method -
Direct attachment
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
1
Number of auxiliary contacts as normally open contact -
1
Operating voltage at AC 50 Hz -
1000 Volt
Operating voltage at AC 60 Hz -
1000 Volt
Operating voltage at DC -
1000 Volt
Rated control supply voltage at AC 50 Hz -
0 Volt
Rated control supply voltage at AC 60 Hz -
0 Volt
Rated control supply voltage at DC -
0 Volt
Rated switch current -
380 Ampere
Release class -
Adjustable
Reset function automatic -
Reset function push-button -
Type of electrical connection of main circuit -
Screw connection
Voltage type (operating voltage) -
AC
Width -
105 Millimetre
ABB

Availability Available to order

£685.42
