1SAX221001R1101

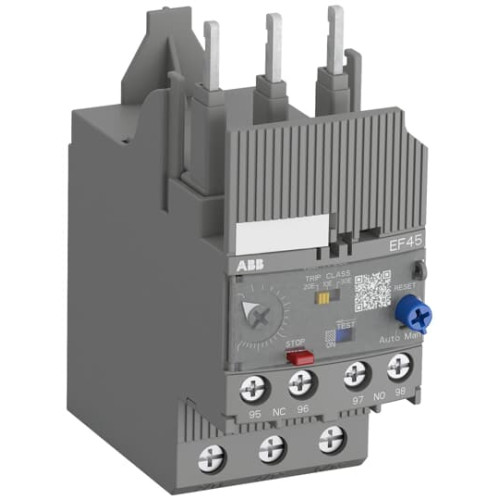

Electronic Overload 9 to 30A, for AF26-AF38

Manufacturer's No: EF45-30     Manufacturer: ABB
Electronic Overload 9 to 30A, for AF26-AF38

Availability Available to order

£192.16
  • Electronic overload relay for AF26-AF38, 9 to 30A range
  • Self-supplied, no external power supply required
  • Provides reliable and fast motor protection against overload or phase failure
  • Wide setting range with high accuracy and operational temperature range
  • Trip class selection (10E, 20E, 30E)
  • Features temperature compensation, trip contact (NC), signal contact (NO)
  • Automatic or manual reset options, trip-free mechanism, STOP and Test functions
  • Trip indication for easy monitoring
  • Direct connection to contactors, single mounting kits available as accessory
  • EF19 and EF45 models have ATEX and IECEx certification

Read more

  • ATEX certification valid for products from week 42, 2014
  • IECEx certification valid for products from week 15, 2017


Product

Manufacturer Material ID -
EF45-30
Net Weight -
0.36kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
CN
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

-
ABB
Rated control supply voltage Us at AC 50HZ -
0 Volt
Rated control supply voltage Us at AC 60HZ -
0 Volt
Rated control supply voltage Us at DC -
0 Volt
Voltage type for actuating -
Selfsupplied
Adjustable current range -
9 Ampere
Depth -
86 Millimetre
Height -
104.7 Millimetre
Mounting method -
Direct attachment
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
1
Number of auxiliary contacts as normally open contact -
1
Operating voltage at AC 50 Hz -
690 Volt
Operating voltage at AC 60 Hz -
690 Volt
Operating voltage at DC -
690 Volt
Rated control supply voltage at AC 50 Hz -
0 Volt
Rated control supply voltage at AC 60 Hz -
0 Volt
Rated control supply voltage at DC -
0 Volt
Rated switch current -
30 Ampere
Release class -
Adjustable
Reset function automatic -
Reset function push-button -
Type of electrical connection of main circuit -
Screw connection
Voltage type (operating voltage) -
AC
Width -
45 Millimetre
ABB

Availability Available to order

£192.16
