1SAX331001R1102

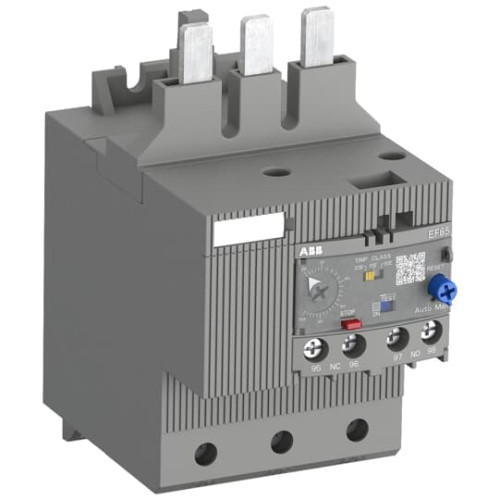

EF65-56 Electronic Overload Relay 20 ... 56 A

Manufacturer's No: EF65-56     Manufacturer: ABB
EF65-56 Electronic Overload Relay 20 ... 56 A

Availability Back Order

£241.32
  • EF65-56 Electronic Overload Relay
  • Self-supplied electronic overload relay (no external supply needed)
  • Reliable and fast protection for motors against overload or phase failure
  • Wide setting range and high accuracy
  • Compatible with standard motor applications
  • Features temperature compensation, trip contact (NC), signal contact (NO)
  • Selectable trip class (10E, 20E, 30E)
  • Automatic or manual reset options
  • Trip-free mechanism with STOP and Test functions
  • Trip indication for easy monitoring

Read more

  • Operates within a high operational temperature range
  • Can be directly connected to contactors
  • Single mounting kits available as accessory
  • ATEX and IECEx certified (EF65, EF96, EF146)
  • ATEX certification valid for products produced from week 42, 2014
  • IECEx certification valid for products produced from week 15, 2017


Product

Manufacturer Material ID -
EF65-56
Net Weight -
0.82kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
CN
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

-
ABB
Rated control supply voltage Us at AC 50HZ -
0 Volt
Rated control supply voltage Us at AC 60HZ -
0 Volt
Rated control supply voltage Us at DC -
0 Volt
Voltage type for actuating -
Selfsupplied
Adjustable current range -
20 Ampere
Depth -
105.2 Millimetre
Height -
131.2 Millimetre
Mounting method -
Direct attachment
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
1
Number of auxiliary contacts as normally open contact -
1
Operating voltage at AC 50 Hz -
1000 Volt
Operating voltage at AC 60 Hz -
1000 Volt
Operating voltage at DC -
1000 Volt
Rated control supply voltage at AC 50 Hz -
0 Volt
Rated control supply voltage at AC 60 Hz -
0 Volt
Rated control supply voltage at DC -
0 Volt
Rated switch current -
56 Ampere
Release class -
Adjustable
Reset function automatic -
Reset function push-button -
Type of electrical connection of main circuit -
Screw connection
Voltage type (operating voltage) -
AC
Width -
70 Millimetre
ABB

Availability Back Order

£241.32
