1SAX341001R1102

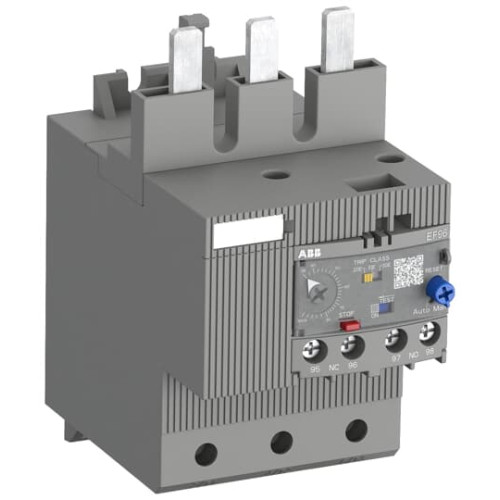

EF96-56 Electronic Overload Relay 20 ... 56 A

Manufacturer's No: EF96-56     Manufacturer: ABB
EF96-56 Electronic Overload Relay 20 ... 56 A

Availability Back Order

£303.58
  • EF96-56 Electronic Overload Relay
  • Self-supplied electronic overload relay (no external supply needed)
  • Reliable and fast protection for motors against overload or phase failure
  • Wide setting range, high accuracy, and high operational temperature range
  • Trip class selection (10E, 20E, 30E)
  • Temperature compensation, trip contact (NC), signal contact (NO)
  • Automatic or manual reset selectable, trip-free mechanism
  • STOP and Test function, trip indication
  • Compatible with standard motor applications
  • ATEX and IECEx certification for EF65, EF96, and EF146

Read more

  • Single mounting kits available as accessory
  • ATEX certification valid for products produced from week 42, 2014
  • IECEx certification valid for products produced from week 15, 2017


Product

Manufacturer Material ID -
EF96-56
Net Weight -
0.89kg

Additional Product Information

Commodity Code -
85364900
UNSPSC -
39121529

Technical Specification

-
ABB
Voltage type for actuating -
Selfsupplied
Adjustable current range -
20 Ampere
Depth -
105.2 Millimetre
Height -
132.7 Millimetre
Mounting method -
Direct attachment
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
1
Number of auxiliary contacts as normally open contact -
1
Operating voltage at AC 50 Hz -
1000 Volt
Operating voltage at AC 60 Hz -
1000 Volt
Operating voltage at DC -
1000 Volt
Rated control supply voltage at AC 50 Hz -
0 Volt
Rated control supply voltage at AC 60 Hz -
0 Volt
Rated control supply voltage at DC -
0 Volt
Release class -
Adjustable
Reset function automatic -
Reset function push-button -
Type of electrical connection of main circuit -
Screw connection
Voltage type (operating voltage) -
AC
Width -
70 Millimetre
ABB

Availability Back Order

£303.58
