1SFA898115R7000

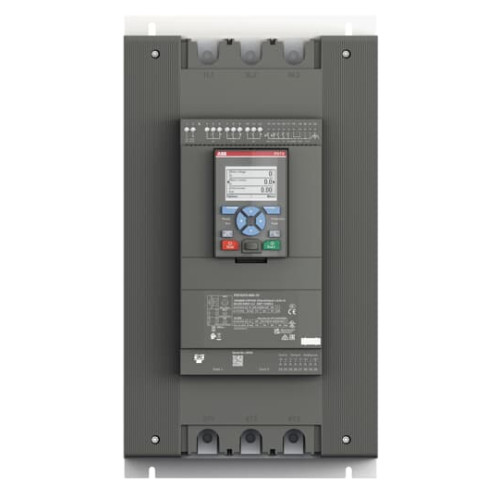

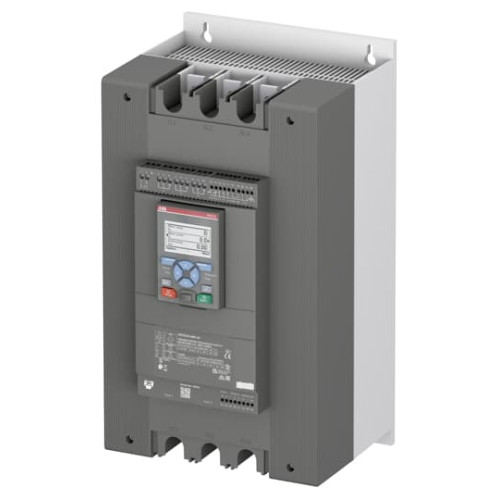

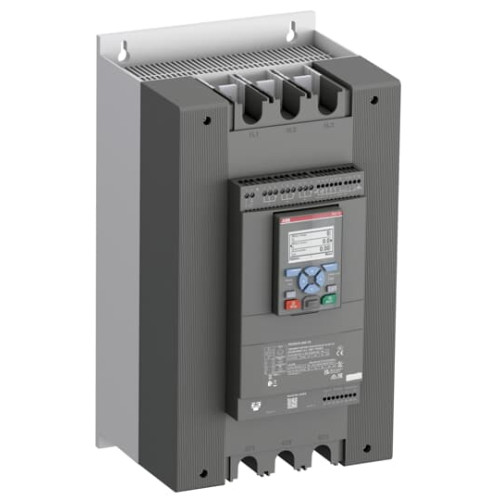

PSTX370-600-70 Softstarter - 370 A - 208 ... 600 V AC

Manufacturer's No: PSTX370-600-70     Manufacturer: ABB
PSTX370-600-70 Softstarter - 370 A - 208 ... 600 V AC

Availability Back Order

£7,500.29
  • Softstarter model: PSTX370-600-70
  • Rated operational current: 370 A
  • Operating voltage: 208...600 V AC
  • Rated control voltage: 100...250 V AC, 50/60 Hz
  • Three-phase control soft start and stop
  • Built-in bypass for easy installation and energy saving
  • Relay outputs for RUN, TOR, and Event signals in normally open state
  • Functions: current limit, kickstart, analog output, EOL, motor heating, pump cleaning
  • Additional features: jog, braking, stand-still brake, diagnostics, sequence start, emergency/fire pump mode
  • Detachable full graphic display with IP66 and 4x outdoor rating

Read more

  • Communication options: hardwire inputs, programmable digital inputs, Fieldbus communication (Modbus RTU, optional ANYBUS modules)
  • Suitable for medium to large-sized three-phase motors
  • Inline connection: 30...1250 A
  • Inside delta connection: 52...2160 A
  • Applications: pumps, fans, compressors, conveyors


Product

Manufacturer Material ID -
PSTX370-600-70
Net Weight -
14.30kg

Additional Product Information

Commodity Code -
85371091
Minimum Order Quantity -
1
UNSPSC -
39121521

Technical Specification

-
ABB
Degree of protection (IP rating) -
IP00
Degree of protection (NEMA) -
1
Display -
Integrated motor overload protection -
Internal bypass -
Rated control supply voltage at AC 50 Hz -
100 Volt
Rated control supply voltage at AC 60 Hz -
100 Volt
Rated operating voltage Ue -
208 Volt
Rated operation current Ie at 40 °C Tu -
370 Ampere
Rated power three-phase motor, inline, at 230 V -
110 Kilowatt
Rated power three-phase motor, inline, at 400 V -
200 Kilowatt
Rated power three-phase motor, inside delta, at 230 V -
200 Kilowatt
Rated power three-phase motor, inside delta, at 400 V -
355 Kilowatt
Rated surrounding temperature without derating -
40 Degrees celsius
Release class -
Adjustable
Torque control -
Voltage type for actuating -
AC
ABB

Availability Back Order

£7,500.29
