1SFA898104R7000

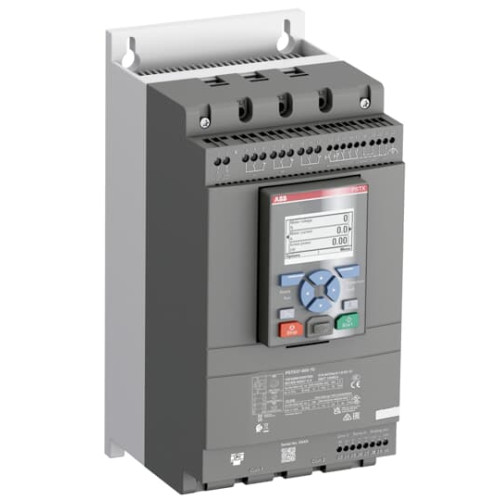

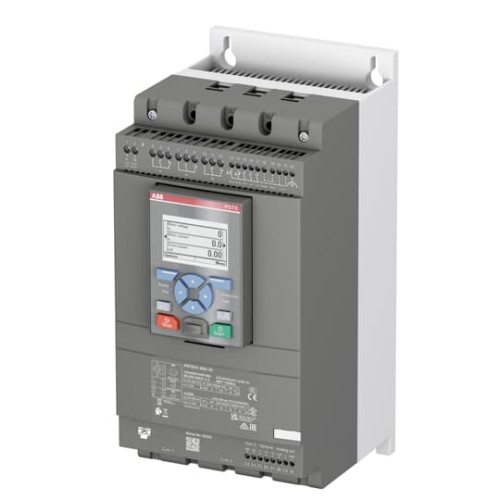

PSTX37-600-70 Softstarter - 37 A - 208 ... 600 V AC

Manufacturer's No: PSTX37-600-70     Manufacturer: ABB
PSTX37-600-70 Softstarter - 37 A - 208 ... 600 V AC

Availability Back Order

£1,900.18
  • Model: PSTX37-600-70 Softstarter
  • Rated operational current: 37 A
  • Operating voltage: 208...600 V AC
  • Rated control voltage: 100...250 V AC, 50/60 Hz
  • Three-phase control soft start and stop
  • Built-in bypass for easy installation and energy saving
  • Relay outputs for RUN, TOR, and Event signals
  • Functions: current limit, kickstart, analog output, EOL, motor heating, pump cleaning
  • Additional features: jog, braking, stand-still brake, diagnostics, sequence start, emergency/fire pump mode
  • Detachable full graphic display with IP66 and 4x outdoor rating

Read more

  • Communication options: hardwire inputs, programmable digital inputs, Fieldbus communication (Modbus RTU, optional ANYBUS modules)
  • Suitable for medium to large-sized three-phase motors
  • Inline connection: 30...1250 A
  • Inside delta connection: 52...2160 A
  • Ideal for applications such as pumps, fans, compressors, and conveyors


Product

Manufacturer Material ID -
PSTX37-600-70
Net Weight -
6.10kg

Additional Product Information

Commodity Code -
85371091
Minimum Order Quantity -
1
UNSPSC -
39121521

Technical Specification

-
ABB
Degree of protection (IP rating) -
IP00
Degree of protection (NEMA) -
1
Display -
Integrated motor overload protection -
Internal bypass -
Rated control supply voltage at AC 50 Hz -
100 Volt
Rated control supply voltage at AC 60 Hz -
100 Volt
Rated operating voltage Ue -
208 Volt
Rated operation current Ie at 40 °C Tu -
37 Ampere
Rated power three-phase motor, inline, at 230 V -
9 Kilowatt
Rated power three-phase motor, inline, at 400 V -
18.5 Kilowatt
Rated power three-phase motor, inside delta, at 230 V -
15 Kilowatt
Rated power three-phase motor, inside delta, at 400 V -
30 Kilowatt
Rated surrounding temperature without derating -
40 Degrees celsius
Release class -
Adjustable
Torque control -
Voltage type for actuating -
AC
ABB

Availability Back Order

£1,900.18
