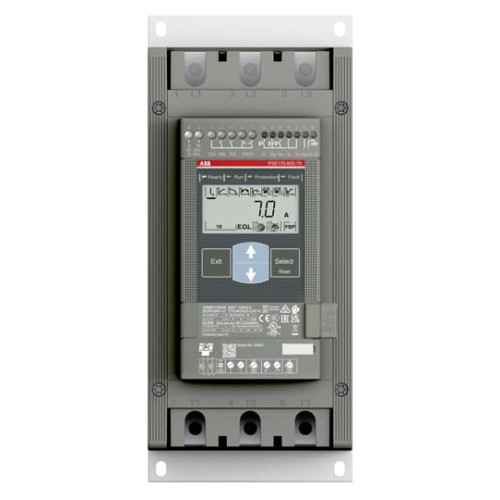

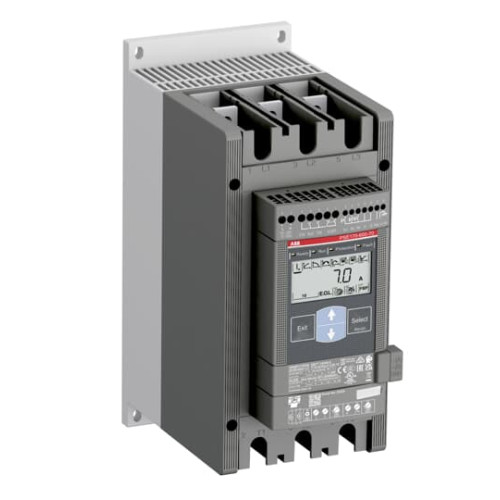

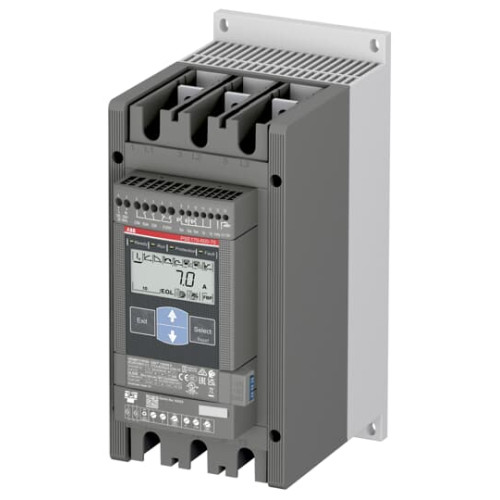

1SFA897111R7000

90kW (170A) , PSE Basic Softstart, 24VDC control

Manufacturer's No: PSE170-600-70     Manufacturer: ABB
90kW (170A) , PSE Basic Softstart, 24VDC control

Availability Back Order

£2,267.53
  • Power: 90 kW (170A)
  • Control: PSE Basic Softstart
  • Voltage: 24VDC
  • Operational current: 170 A
  • Voltage range: 208-600 V AC
  • Control voltage: 100-250 V AC, 50/60 Hz
  • Features two-phase control with soft start and stop
  • Built-in bypass for easy installation and energy saving
  • Functions include current limit, kickstart, analog output, EOL, underload, and locked rotor protection
  • Illuminated display with language-neutral symbols

Read more

  • Option to add external keypad (IP66 rated)
  • Communication options: hardwire inputs Start/Stop, Reset of fault, Modbus RTU fieldbus communication
  • Suitable for small to medium-sized three-phase motors (18-370 A)
  • Ideal for applications such as pumps, fans, compressors, and conveyors


Product

Manufacturer Material ID -
PSE170-600-70
Net Weight -
4.20kg

Additional Product Information

Commodity Code -
85371091
Minimum Order Quantity -
1
UNSPSC -
39121521

Technical Specification

-
ABB
Degree of protection (IP rating) -
IP00
Degree of protection (NEMA) -
1
Display -
Integrated motor overload protection -
Internal bypass -
Rated control supply voltage at AC 50 Hz -
100 Volt
Rated control supply voltage at AC 60 Hz -
100 Volt
Rated operating voltage Ue -
208 Volt
Rated operation current Ie at 40 °C Tu -
171 Ampere
Rated power three-phase motor, inline, at 230 V -
45 Kilowatt
Rated power three-phase motor, inline, at 400 V -
90 Kilowatt
Rated surrounding temperature without derating -
40 Degrees celsius
Release class -
Adjustable
Torque control -
Voltage type for actuating -
AC
ABB

Availability Back Order

£2,267.53
