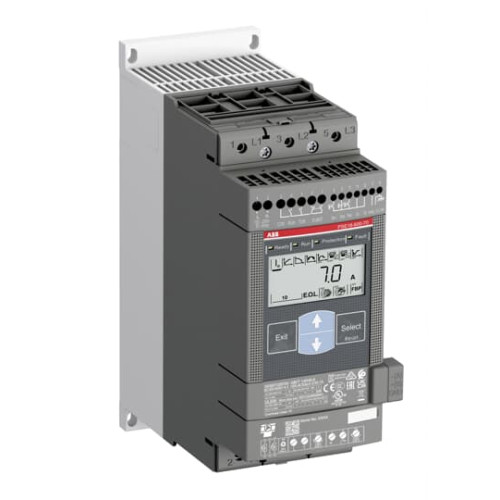

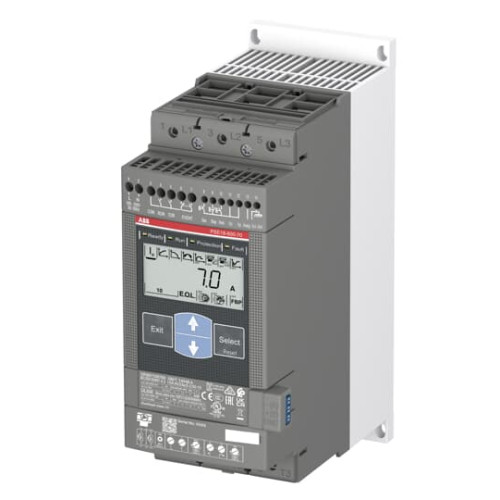

1SFA897101R7000

7.5kW (18A) , PSE Basic Softstart, 24VDC control

Manufacturer's No: PSE18     Manufacturer: ABB
7.5kW (18A) , PSE Basic Softstart, 24VDC control

Availability Available to order

£695.27
  • Power: 7.5 kW (18A)
  • Control Voltage: 24VDC
  • Operational Current: 18A
  • Operating Voltage: 208-600 V AC
  • Control Voltage Range: 100-250 V AC at 50/60 Hz
  • Features soft start and stop with voltage or torque ramp
  • Built-in bypass for easy installation and energy saving
  • Relay output for RUN, TOR, and Event signals in NO state
  • Functions include current limit, kickstart, analog output, EOL, underload, and locked rotor protection
  • Illuminated display with language-neutral symbols

Read more

  • Option to add external keypad (IP66 rated)
  • Communication options: hardwire inputs Start/Stop, Reset of fault, Modbus RTU fieldbus communication
  • Suitable for small to medium-sized three-phase motors (18-370 A)
  • Ideal for applications like pumps, fans, compressors, and conveyors


Product

Manufacturer Material ID -
PSE18
Net Weight -
2.40kg

Additional Product Information

Commodity Code -
85371091
Minimum Order Quantity -
1
UNSPSC -
39121521

Technical Specification

-
ABB
Degree of protection (IP rating) -
IP00
Degree of protection (NEMA) -
1
Display -
Integrated motor overload protection -
Internal bypass -
Rated control supply voltage at AC 50 Hz -
100 Volt
Rated control supply voltage at AC 60 Hz -
100 Volt
Rated operating voltage Ue -
208 Volt
Rated operation current Ie at 40 °C Tu -
18 Ampere
Rated power three-phase motor, inline, at 230 V -
4 Kilowatt
Rated power three-phase motor, inline, at 400 V -
7.5 Kilowatt
Rated surrounding temperature without derating -
40 Degrees celsius
Release class -
Adjustable
Torque control -
Voltage type for actuating -
AC
