1SFA897108R7000

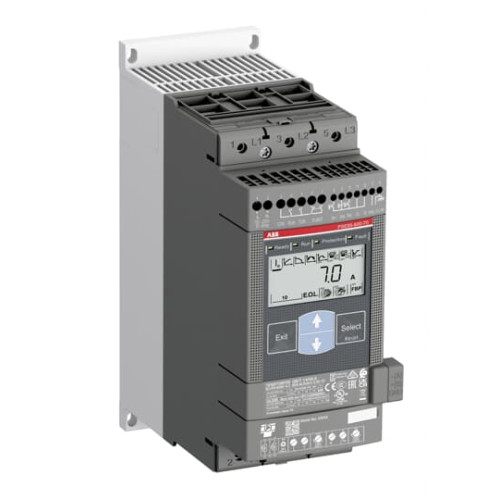

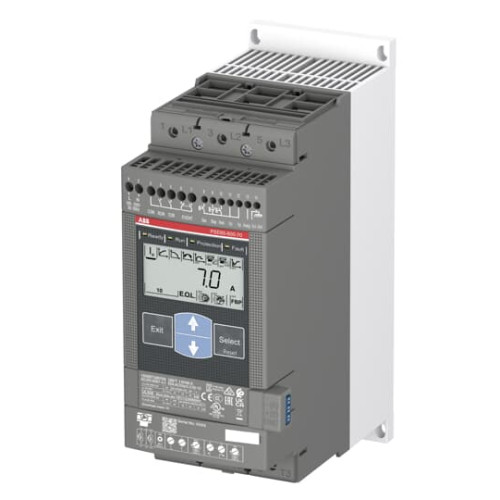

45kW (85A) , PSE Basic Softstart, 24VDC control

Manufacturer's No: PSE85-600-70     Manufacturer: ABB
45kW (85A) , PSE Basic Softstart, 24VDC control

Availability Back Order

£1,580.40
  • Rated maximum operational current: 85A
  • Operating voltage span: 208-600V AC
  • Rated control voltage: 100-250V AC at 50/60Hz
  • Two-phase control with soft start and stop
  • Built-in bypass for easy installation and energy saving
  • Functions: current limit, kickstart, analog output, EOL, underload, locked rotor protection
  • Illuminated display with language-neutral symbols
  • External keypad option with IP66 rating
  • Communication options: hardwire inputs Start/Stop, Reset of fault, Modbus RTU fieldbus communication
  • Suitable for small to medium-sized three-phase motors with nominal currents from 18-370A

Read more

  • Ideal for pumps, fans, compressors, and conveyors


Product

Manufacturer Material ID -
PSE85-600-70
Net Weight -
2.50kg

Additional Product Information

Commodity Code -
85371091
Minimum Order Quantity -
1
UNSPSC -
39121521

Technical Specification

-
ABB
Degree of protection (IP rating) -
IP00
Degree of protection (NEMA) -
1
Display -
Integrated motor overload protection -
Internal bypass -
Rated control supply voltage at AC 50 Hz -
100 Volt
Rated control supply voltage at AC 60 Hz -
100 Volt
Rated operating voltage Ue -
208 Volt
Rated operation current Ie at 40 °C Tu -
85 Ampere
Rated power three-phase motor, inline, at 230 V -
22 Kilowatt
Rated power three-phase motor, inline, at 400 V -
45 Kilowatt
Rated surrounding temperature without derating -
40 Degrees celsius
Release class -
Adjustable
Torque control -
Voltage type for actuating -
AC
ABB

Availability Back Order

£1,580.40
