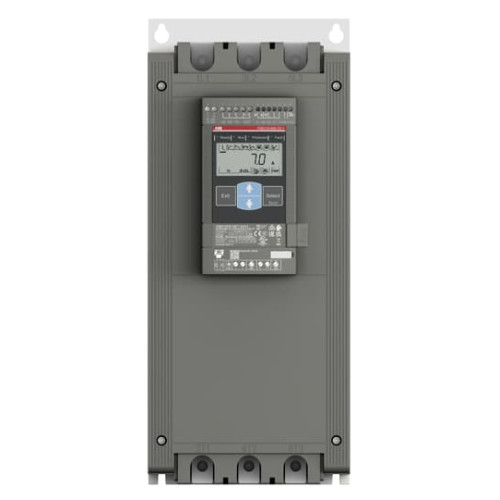

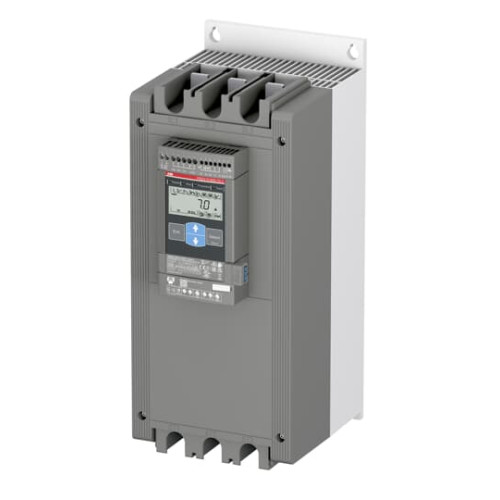

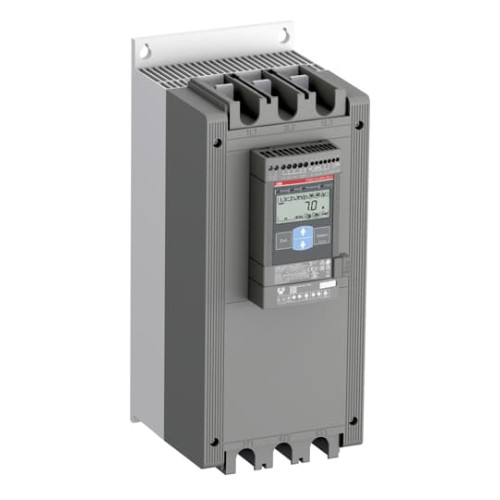

PSE210-600-70-1 Softstarter - 210 A - 208 ... 600 V AC

Manufacturer's No: PSE210-600-70-1     Manufacturer: ABB
PSE210-600-70-1 Softstarter - 210 A - 208 ... 600 V AC

Availability Available to order

£2,552.58
  • Softstarter model: PSE210-600-70-1
  • Rated operational current: 210 A
  • Operating voltage: 208...600 V AC
  • Rated control voltage: 100...250 V AC at 50/60 Hz
  • Two-phase control with soft start and stop
  • Built-in bypass for easy installation and energy saving
  • Relay output for RUN, TOR, and Event signals in normally open state
  • Functions include current limit, kickstart, analog output, EOL, underload, and locked rotor protection
  • Illuminated display with language-neutral symbols
  • Option to add external keypad with IP66 rating

Read more

  • Communication options: hardwire inputs Start/Stop, Reset of fault, Modbus RTU fieldbus communication
  • Suitable for small to medium-sized three-phase motors with nominal currents from 18...370 A
  • Ideal for applications such as pumps, fans, compressors, and conveyors


Product

Manufacturer Material ID -
PSE210-600-70-1
Net Weight -
12.40kg

Additional Product Information

Commodity Code -
85371091
UNSPSC -
39121521

Technical Specification

-
ABB
Degree of protection (IP rating) -
IP00
Degree of protection (NEMA) -
1
Display -
Integrated motor overload protection -
Internal bypass -
Rated control supply voltage at AC 50 Hz -
100 Volt
Rated control supply voltage at AC 60 Hz -
100 Volt
Rated operating voltage Ue -
208 Volt
Rated operation current Ie at 40 °C Tu -
210 Ampere
Rated power three-phase motor, inline, at 230 V -
59 Kilowatt
Rated power three-phase motor, inline, at 400 V -
110 Kilowatt
Rated surrounding temperature without derating -
40 Degrees celsius
Release class -
Adjustable
Torque control -
Voltage type for actuating -
AC
