1SFA896106R1100

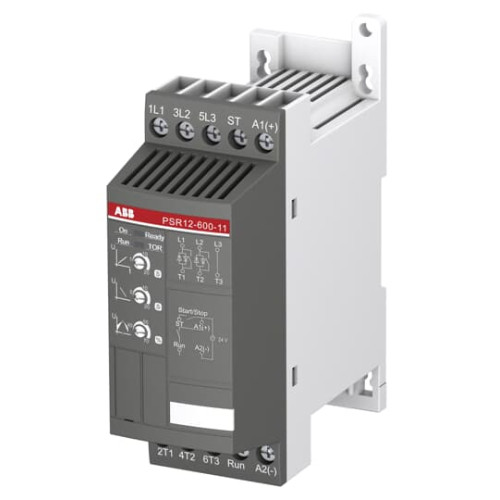

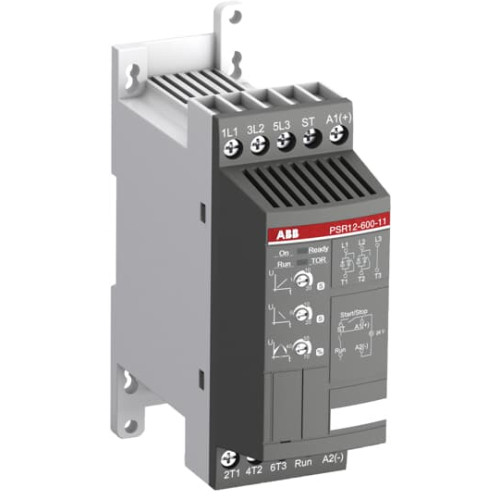

PSR12-600-11 Softstarter - 12 A - 208 ... 600 V AC

Manufacturer's No: PSR12-600-11     Manufacturer: ABB
PSR12-600-11 Softstarter - 12 A - 208 ... 600 V AC

Availability Back Order

£243.14
  • Model: PSR12-600-11 Softstarter
  • Rated Operational Current: 12 A
  • Operating Voltage: 208...600 V AC
  • Rated Control Voltage: 24 V AC/DC
  • Features a two-phase control soft start and stop through a voltage ramp
  • Built-in bypass for easy installation and energy saving
  • RUN signal available from a relay output in NO state
  • Easy setting of start/stop ramp and time with three potentiometers
  • Compatible with manual motor starters (MMS) from ABB
  • Option for Fieldbus communication with external adaptor and Fieldbus plug

Read more

  • Compact design with basic functionality
  • Suitable for small three-phase motors with nominal currents from 3...105 A
  • Can handle up to 100 starts per hour
  • Common applications include pumps, fans, compressors, and conveyors


Product

Manufacturer Material ID -
PSR12-600-11
Net Weight -
0.40kg

Additional Product Information

Commodity Code -
85371091
Minimum Order Quantity -
1
UNSPSC -
39121521

Technical Specification

-
ABB
Degree of protection (IP rating) -
IP20
Degree of protection (NEMA) -
1
Internal bypass -
Rated control supply voltage at AC 50 Hz -
24 Volt
Rated control supply voltage at AC 60 Hz -
24 Volt
Rated control supply voltage at DC -
24 Volt
Rated operating voltage Ue -
208 Volt
Rated operation current Ie at 40 °C Tu -
12 Ampere
Rated power three-phase motor, inline, at 230 V -
3 Kilowatt
Rated power three-phase motor, inline, at 400 V -
5.5 Kilowatt
Rated surrounding temperature without derating -
40 Degrees celsius
Release class -
Adjustable
Voltage type for actuating -
AC/DC
ABB

Availability Back Order

£243.14
