1SFA896111R1100

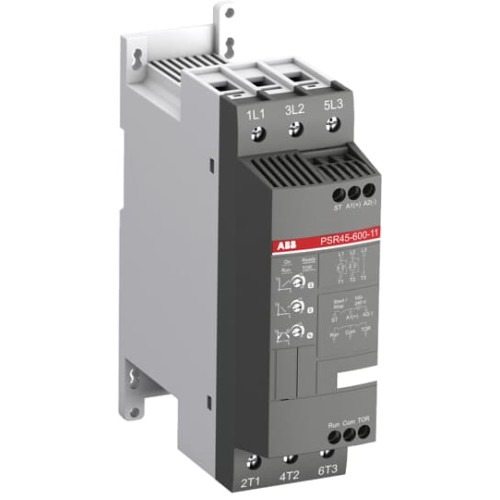

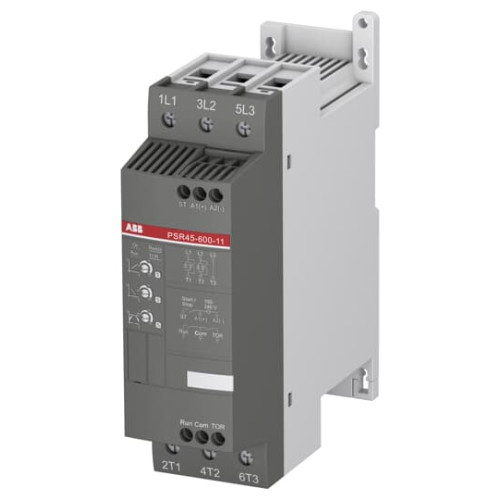

PSR45-600-11 Softstarter - 45 A - 208 ... 600 V AC

Manufacturer's No: PSR45-600-11     Manufacturer: ABB
PSR45-600-11 Softstarter - 45 A - 208 ... 600 V AC

Availability Back Order

£615.78
  • Softstarter PSR45-600-11
    • Rated operational current: 45 A
    • Operating voltage: 208-600 V AC
    • Rated control voltage: 24 V AC/DC
    • Two-phase control soft start and stop
    • Built-in bypass for easy installation and energy saving
    • Relay output for RUN and TOR signals in normally open state
    • Easy setting of start/stop ramp and time with three potentiometers
    • Compatible with manual motor starter (MMS) from ABB
    • Option for Fieldbus communication with external adaptor and Fieldbus plug
    • Compact design suitable for small three-phase motors (3-105 A)
    • Can handle up to 100 starts per hour
    • Common applications: pumps, fans, compressors, conveyors
  • Rated operational current: 45 A
  • Operating voltage: 208-600 V AC
  • Rated control voltage: 24 V AC/DC
  • Two-phase control soft start and stop
  • Built-in bypass for easy installation and energy saving
  • Relay output for RUN and TOR signals in normally open state
  • Easy setting of start/stop ramp and time with three potentiometers
  • Compatible with manual motor starter (MMS) from ABB
  • Option for Fieldbus communication with external adaptor and Fieldbus plug

Read more

  • Compact design suitable for small three-phase motors (3-105 A)
  • Can handle up to 100 starts per hour
  • Common applications: pumps, fans, compressors, conveyors


Product

Manufacturer Material ID -
PSR45-600-11
Net Weight -
1.00kg

Additional Product Information

Commodity Code -
85371091
Minimum Order Quantity -
1
UNSPSC -
39121521

Technical Specification

-
ABB
Degree of protection (IP rating) -
IP10
Degree of protection (NEMA) -
1
Internal bypass -
Rated control supply voltage at AC 50 Hz -
24 Volt
Rated control supply voltage at AC 60 Hz -
24 Volt
Rated control supply voltage at DC -
24 Volt
Rated operating voltage Ue -
208 Volt
Rated operation current Ie at 40 °C Tu -
45 Ampere
Rated power three-phase motor, inline, at 230 V -
11 Kilowatt
Rated power three-phase motor, inline, at 400 V -
22 Kilowatt
Rated surrounding temperature without derating -
40 Degrees celsius
Release class -
Adjustable
Voltage type for actuating -
AC/DC
ABB

Availability Back Order

£615.78
