1SFA896115R7000

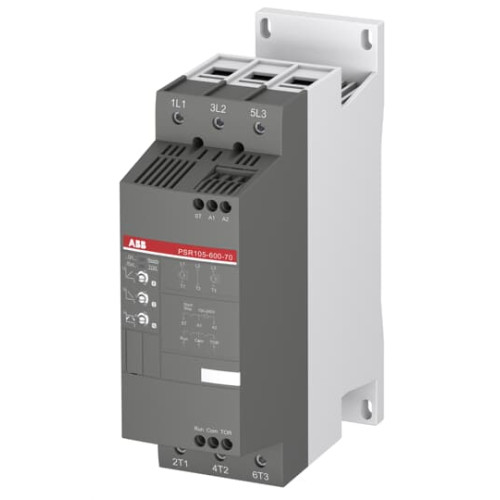

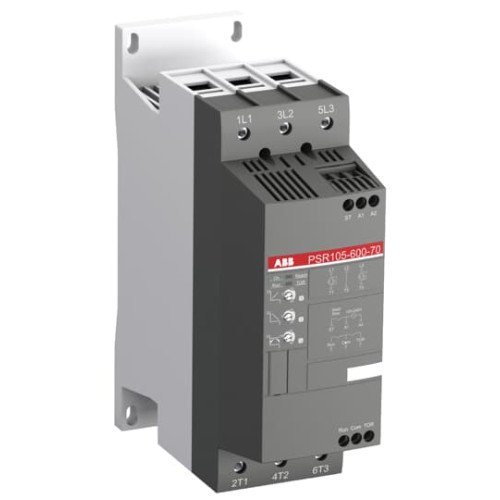

55kW (105A) , PSR Basic Softstart, 100 to 240VAC control

Manufacturer's No: PSR105-600-70     Manufacturer: ABB
55kW (105A) , PSR Basic Softstart, 100 to 240VAC control

Availability Back Order

£1,025.40
  • Power: 55 kW (105 A)
  • Control Voltage: 100-240 VAC
  • Operating Voltage: 208-600 VAC
  • Features a two-phase control soft start and stop through a voltage ramp
  • Built-in bypass for easy installation and energy saving
  • Relay output provides RUN and TOR signals in normally open state
  • Easy setting of start/stop ramp and time with three potentiometers
  • Compatible with manual motor starters (MMS) from ABB
  • Option for Fieldbus communication with external adaptor and Fieldbus plug
  • Compact design suitable for small three-phase motors (3-105 A)

Read more

  • Can handle up to 100 starts per hour
  • Common applications include pumps, fans, compressors, and conveyors


Product

Manufacturer Material ID -
PSR105-600-70
Net Weight -
2.27kg

Additional Product Information

Commodity Code -
85371091
Minimum Order Quantity -
1
UNSPSC -
39121521

Technical Specification

-
ABB
Degree of protection (IP rating) -
IP10
Degree of protection (NEMA) -
1
Internal bypass -
Rated control supply voltage at AC 50 Hz -
100 Volt
Rated control supply voltage at AC 60 Hz -
100 Volt
Rated operating voltage Ue -
208 Volt
Rated operation current Ie at 40 °C Tu -
105 Ampere
Rated power three-phase motor, inline, at 230 V -
30 Kilowatt
Rated power three-phase motor, inline, at 400 V -
55 Kilowatt
Rated surrounding temperature without derating -
40 Degrees celsius
Release class -
Adjustable
Voltage type for actuating -
AC
ABB

Availability Back Order

£1,025.40
