1SFA896107R7000

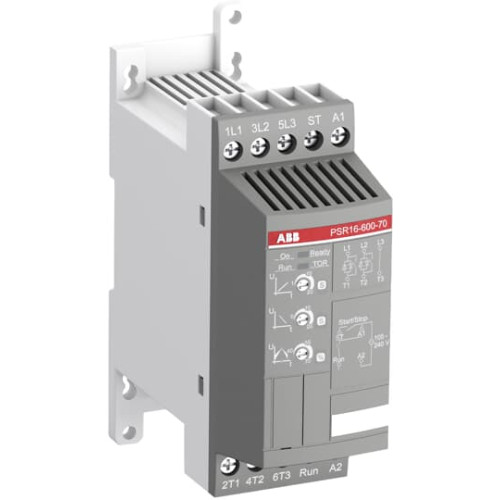

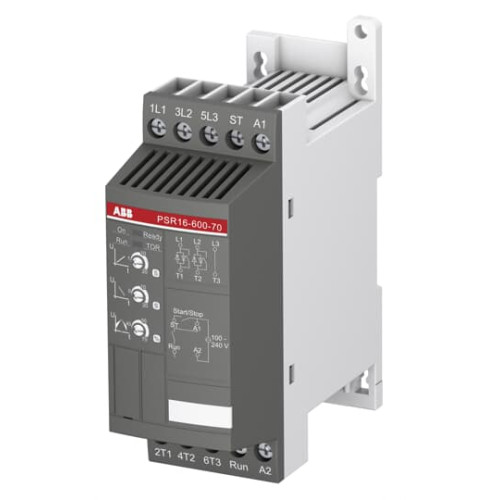

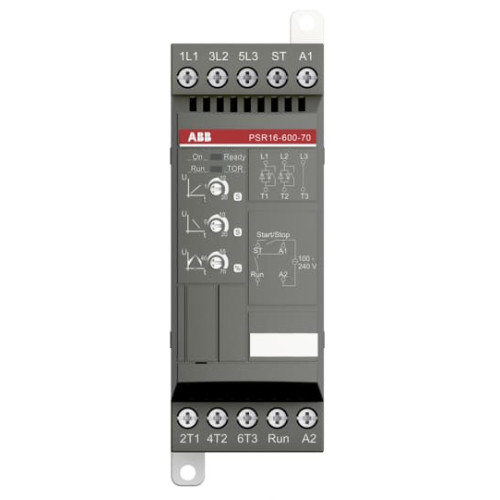

7.5kW (16A) , PSR Basic Softstart, 100 to 240VAC control

Manufacturer's No: PSR16-600-70     Manufacturer: ABB
7.5kW (16A) , PSR Basic Softstart, 100 to 240VAC control

Availability Available to order

£298.58
  • Power: 7.5 kW (16A)
  • Control Voltage: 100-240 VAC
  • Operational Current: 16 A
  • Operating Voltage: 208-600 VAC
  • Features two-phase soft start and stop through voltage ramp
  • Built-in bypass for easy installation and energy saving
  • RUN signal available from relay output in normally open state
  • Easy setting of start/stop ramp and time with three potentiometers
  • Compatible with manual motor starter (MMS) from ABB
  • Option for Fieldbus communication with external adaptor and plug

Read more

  • Suitable for small three-phase motors with nominal currents from 3-105 A
  • Can manage up to 100 starts per hour
  • Common applications include pumps, fans, compressors, and conveyors


Product

Manufacturer Material ID -
PSR16-600-70
Net Weight -
0.40kg

Additional Product Information

Commodity Code -
85371091
Minimum Order Quantity -
1
UNSPSC -
39121521

Technical Specification

-
ABB
Degree of protection (IP rating) -
IP20
Degree of protection (NEMA) -
1
Internal bypass -
Rated control supply voltage at AC 50 Hz -
100 Volt
Rated control supply voltage at AC 60 Hz -
100 Volt
Rated operating voltage Ue -
208 Volt
Rated operation current Ie at 40 °C Tu -
16 Ampere
Rated power three-phase motor, inline, at 230 V -
4 Kilowatt
Rated power three-phase motor, inline, at 400 V -
7.5 Kilowatt
Rated surrounding temperature without derating -
40 Degrees celsius
Release class -
Adjustable
Voltage type for actuating -
AC
